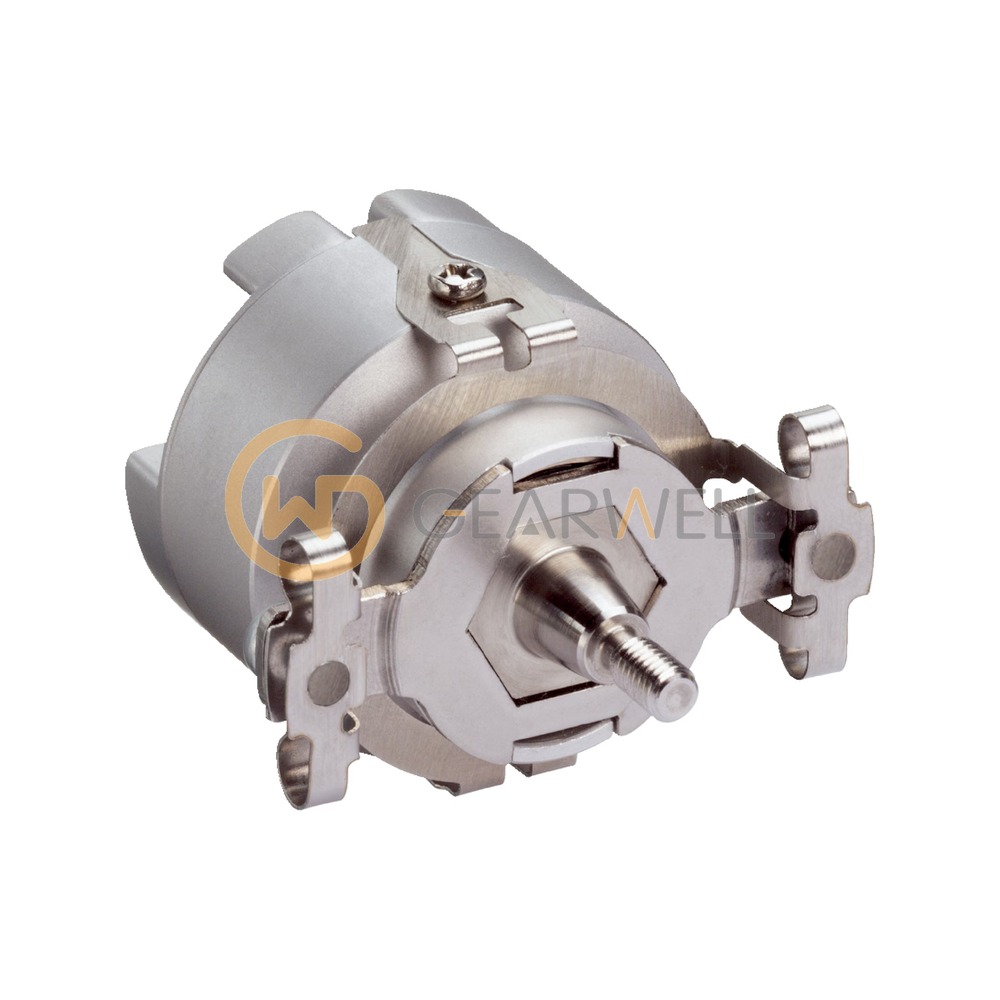

SICK 1034095 SKS36-HFA0-K02 SKS/SKM36 Motor Feedback System
- Brand
- SICK
- Model
- 1034095
- GEARWELL SKU
- GWP-000011728
- Category
- Encoders & Position
Key specifications
- Type code
- SKS36-HFA0-K02
- Supply voltage
- 7 ... 12 V DC
- Connection type
- Male connector, 8-pin, radial
- Operating speed
- ≤ 12,000 min⁻¹
- Mechanical design
- Tapered shaft, spring mounting plate
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1034095 SKS36-HFA0-K02 SKS/SKM36 Motor Feedback System |
|---|---|
| Brand | SICK |
| Model | 1034095 |
| Category | Encoders & Position |
| Type code | SKS36-HFA0-K02 |
| Supply voltage | 7 ... 12 V DC |
| Connection type | Male connector, 8-pin, radial |
| Operating speed | ≤ 12,000 min⁻¹ |
| Mechanical design | Tapered shaft, spring mounting plate |
| Total number of steps | 4,096 |
| Communication interface | HIPERFACE |
| Operating temperature range | -20 ... +110 °C |
| Sine/cosine periods per revolution | 128 |
