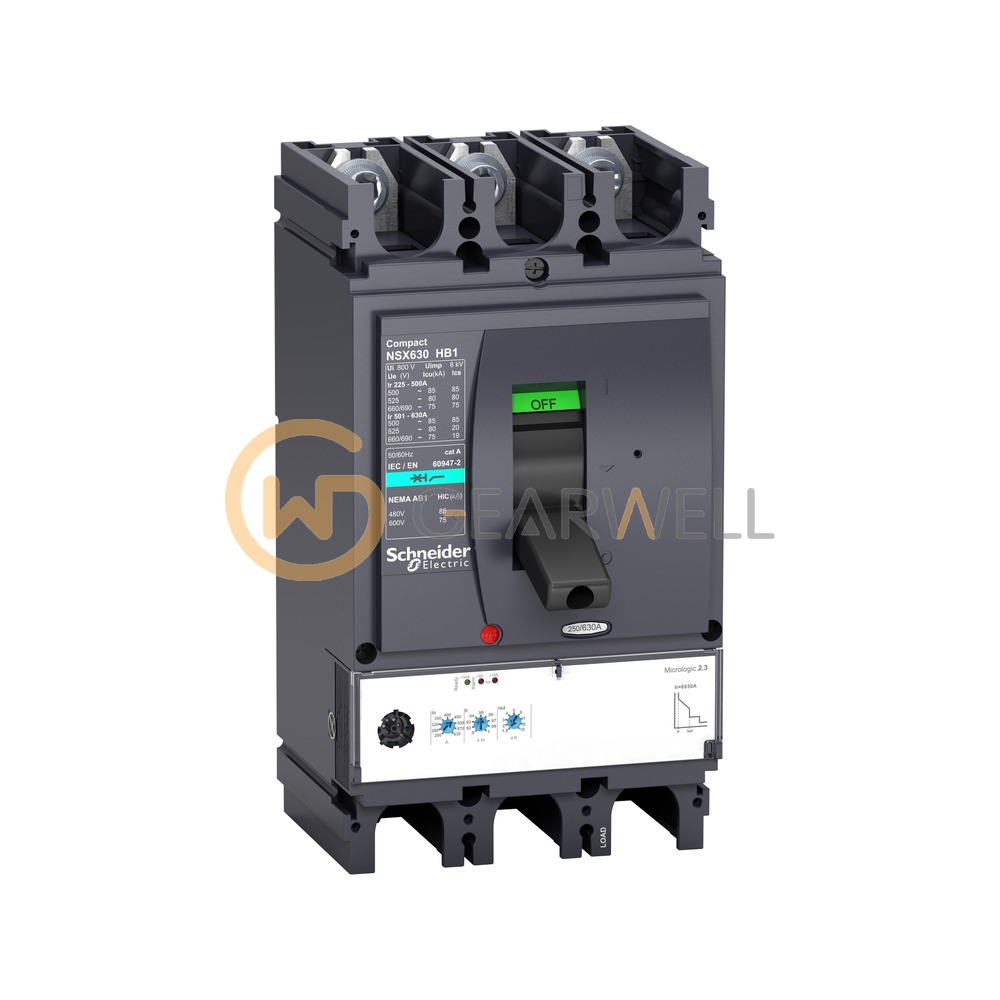

Schneider Electric ComPact NSX630HB1 Moulded case circuit breaker series (NSX630 frame, HB1 performance)

Brand: Schneider Electric
Model: ComPact NSX630HB1
GEARWELL SKU: GWP-000011097
Category: Circuit Protection

Key specifications

Number of poles: 3P or 4P (H 255 mm; W 140 mm 3P / 185 mm 4P)
Device short name: NSX630HB1
Performance level: HB1 75 kA 690 V AC
[Icu] breaking capacity: 85 kA at 500 V AC; 80 kA at 525 V AC; 75 kA at 660/690 V AC (IEC 60947-2)
[In] frame rated current: 630 A at 40 °C

Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Technical reference

Product name	Schneider Electric ComPact NSX630HB1 Moulded case circuit breaker series (NSX630 frame, HB1 performance)
Brand	Schneider Electric
Model	ComPact NSX630HB1
Category	Circuit Protection
Number of poles	3P or 4P (H 255 mm; W 140 mm 3P / 185 mm 4P)
Device short name	NSX630HB1
Performance level	HB1 75 kA 690 V AC
[Icu] breaking capacity	85 kA at 500 V AC; 80 kA at 525 V AC; 75 kA at 660/690 V AC (IEC 60947-2)
[In] frame rated current	630 A at 40 °C
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
