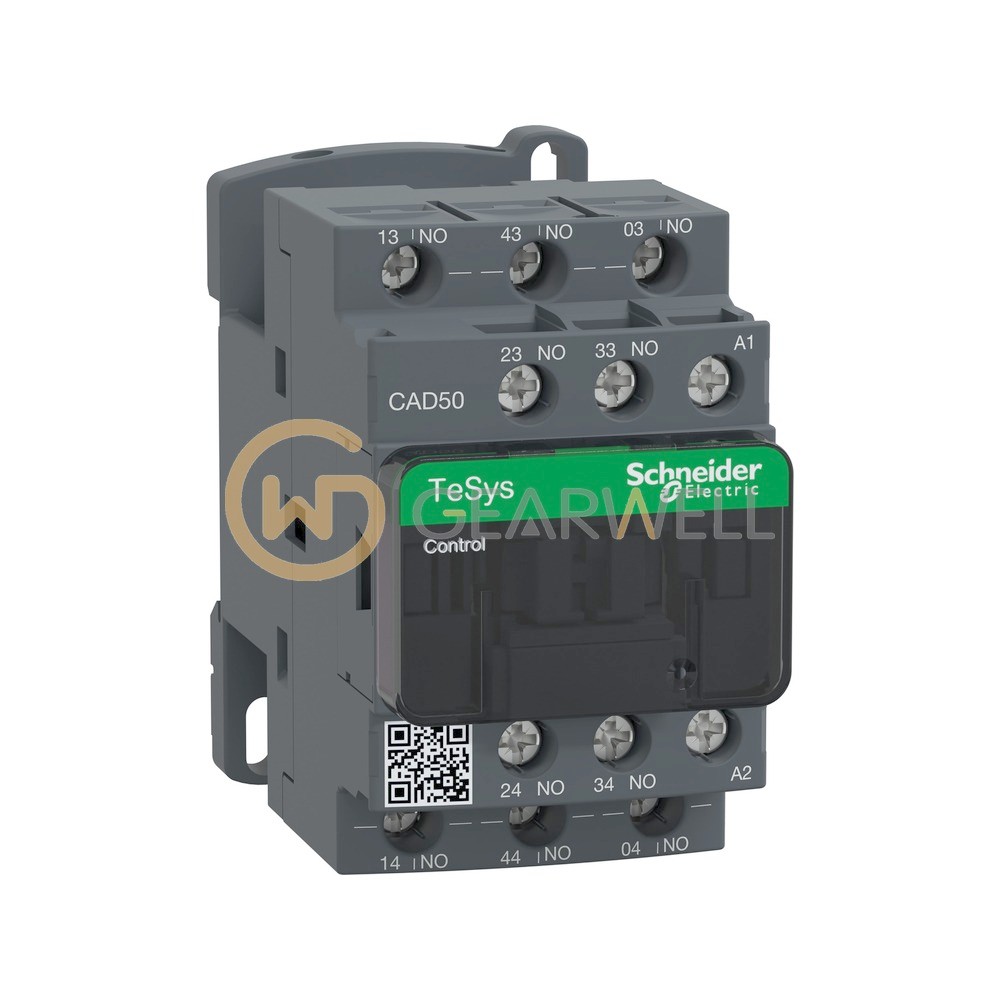

Schneider Electric CAD50U7 TeSys D Control Relay
- Brand
- Schneider Electric
- Model
- CAD50U7
- GEARWELL SKU
- GWP-000007285
- Category
- Relays & Controllers
Key specifications
- Control circuit type
- AC at 50/60 Hz
- Utilisation category
- AC-14, AC-15, DC-13
- Contactor application
- Control circuit
- Pole contact composition
- 5 NO
- [Uc] control circuit voltage
- 240 V AC 50/60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric CAD50U7 TeSys D Control Relay |
|---|---|
| Brand | Schneider Electric |
| Model | CAD50U7 |
| Category | Relays & Controllers |
| Control circuit type | AC at 50/60 Hz |
| Utilisation category | AC-14, AC-15, DC-13 |
| Contactor application | Control circuit |
| Pole contact composition | 5 NO |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| [Ue] rated operational voltage | <= 690 V AC 25...400 Hz |
| [Uimp] rated impulse withstand voltage | 6 KV conforming to IEC 60947 |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
