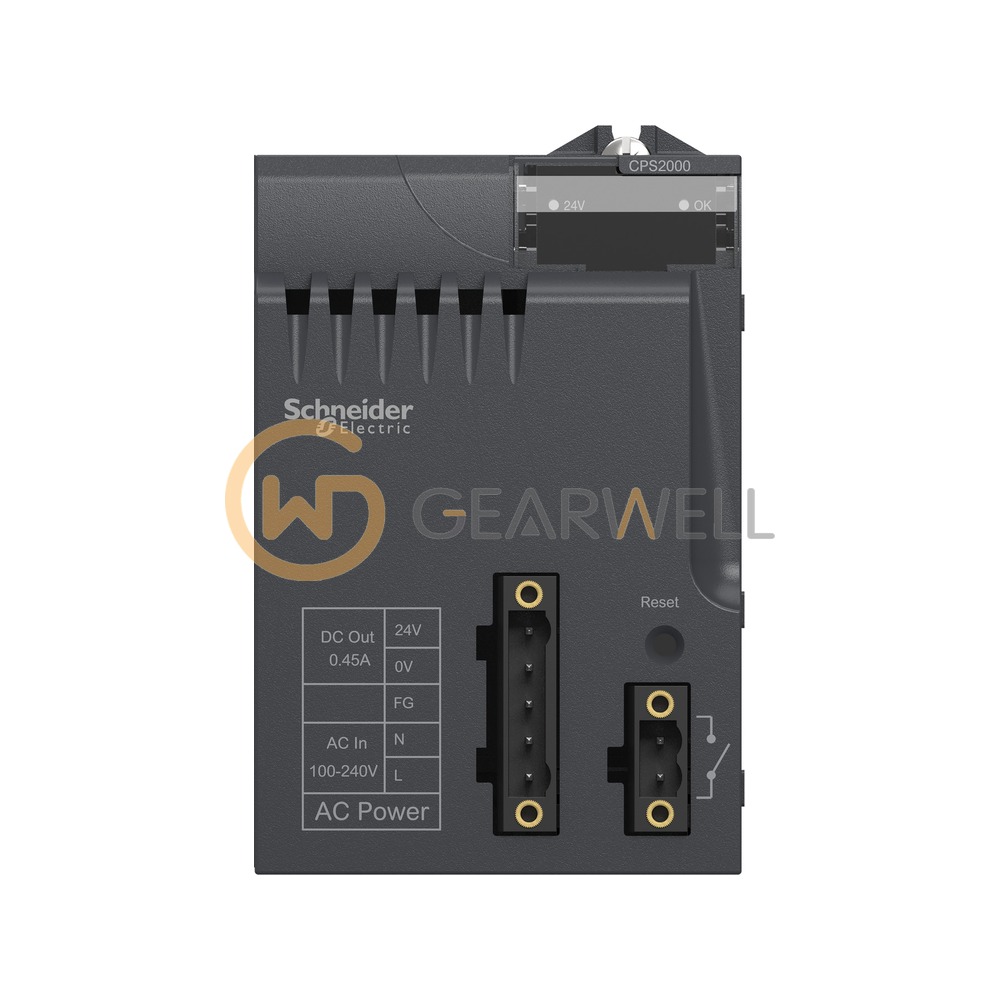

Schneider Electric BMXCPS2000 Modicon X80 Power supply module
- Brand
- Schneider Electric
- Model
- BMXCPS2000
- GEARWELL SKU
- GWP-000016940
- Category
- Power Supplies
Key specifications
- Net weight
- 0.3 kg
- Primary voltage
- 100...240 V AC
- Secondary power
- 10.8 W 24 V DC sensor; 16.8 W 24 V DC I/O and processor; 8.3 W 3.3 V DC logic
- Network frequency
- 50/60 Hz
- Maximum power dissipation
- 8.5 W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric BMXCPS2000 Modicon X80 Power supply module |
|---|---|
| Brand | Schneider Electric |
| Model | BMXCPS2000 |
| Category | Power Supplies |
| Net weight | 0.3 kg |
| Primary voltage | 100...240 V AC |
| Secondary power | 10.8 W 24 V DC sensor; 16.8 W 24 V DC I/O and processor; 8.3 W 3.3 V DC logic |
| Network frequency | 50/60 Hz |
| Maximum power dissipation | 8.5 W |
| Current at secondary voltage | 0.45 A 24 V DC sensor; 0.7 A 24 V DC; 2.5 A 3.3 V DC |
