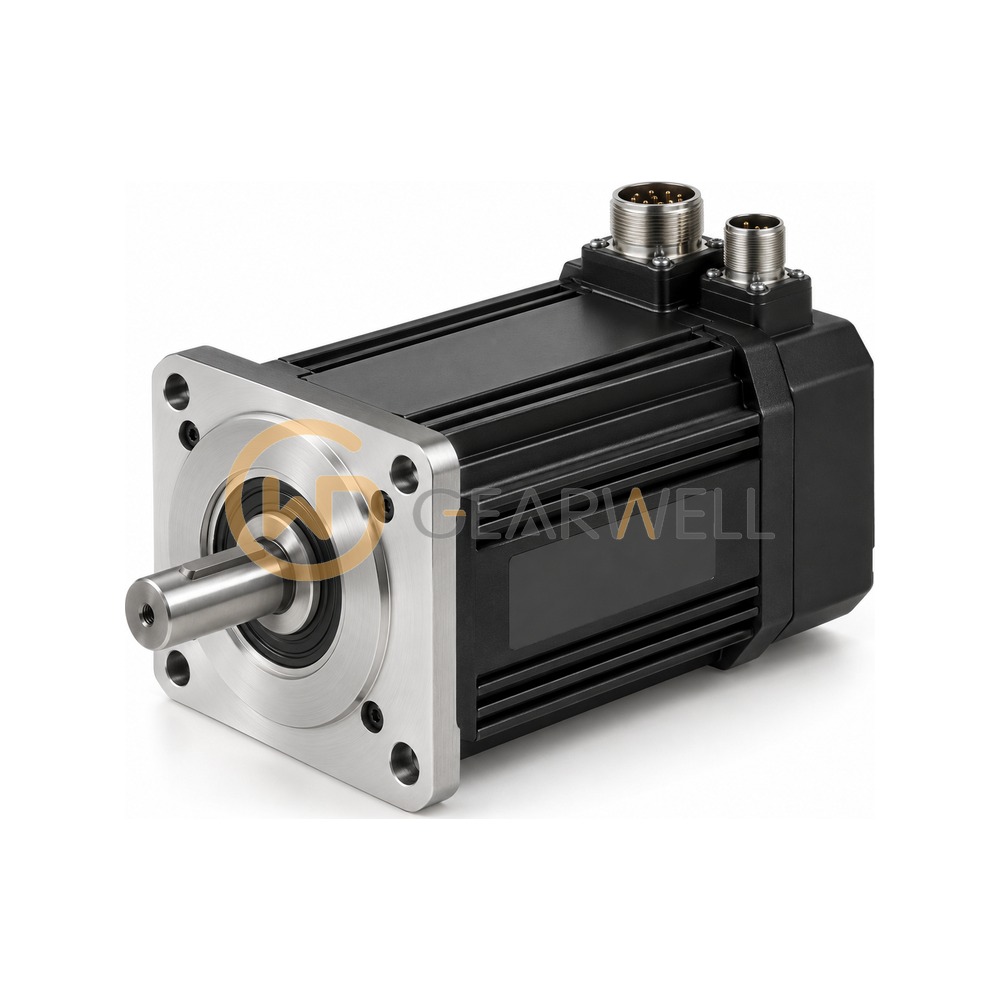

Schneider Electric BMH1002T22F1A Lexium 32 Servo motor
- Brand
- Schneider Electric
- Model
- BMH1002T22F1A
- GEARWELL SKU
- GWP-000013002
- Category
- Servo Systems
Key specifications
- Shaft end
- Smooth shaft
- Holding brake
- With
- Nominal speed
- 2000 rpm for LXM32.D30M2 at 10 A, 115 V, single phase ; 3000 rpm for LXM32.D30M2 at 10 A, 230 V, single phase
- Nominal output power
- 750 W for LXM32.D30M2 at 10 A, 115 V, single phase ; 1450 W for LXM32.D30M2 at 10 A, 230 V, single phase
- Continuous stall torque
- 6 N.M for LXM32.D30M2 at 10 A, 115 V, single phase ; 6 N.M for LXM32.D30M2 at 10 A, 230 V, single phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric BMH1002T22F1A Lexium 32 Servo motor |
|---|---|
| Brand | Schneider Electric |
| Model | BMH1002T22F1A |
| Category | Servo Systems |
| Shaft end | Smooth shaft |
| Holding brake | With |
| Nominal speed | 2000 rpm for LXM32.D30M2 at 10 A, 115 V, single phase ; 3000 rpm for LXM32.D30M2 at 10 A, 230 V, single phase |
| Nominal output power | 750 W for LXM32.D30M2 at 10 A, 115 V, single phase ; 1450 W for LXM32.D30M2 at 10 A, 230 V, single phase |
| Continuous stall torque | 6 N.M for LXM32.D30M2 at 10 A, 115 V, single phase ; 6 N.M for LXM32.D30M2 at 10 A, 230 V, single phase |
| IP degree of protection | IP65 standard ; IP67 with IP67 kit |
| Maximum mechanical speed | 6000 rpm |
| Speed feedback resolution | 131072 points/turn x 4096 turns |
