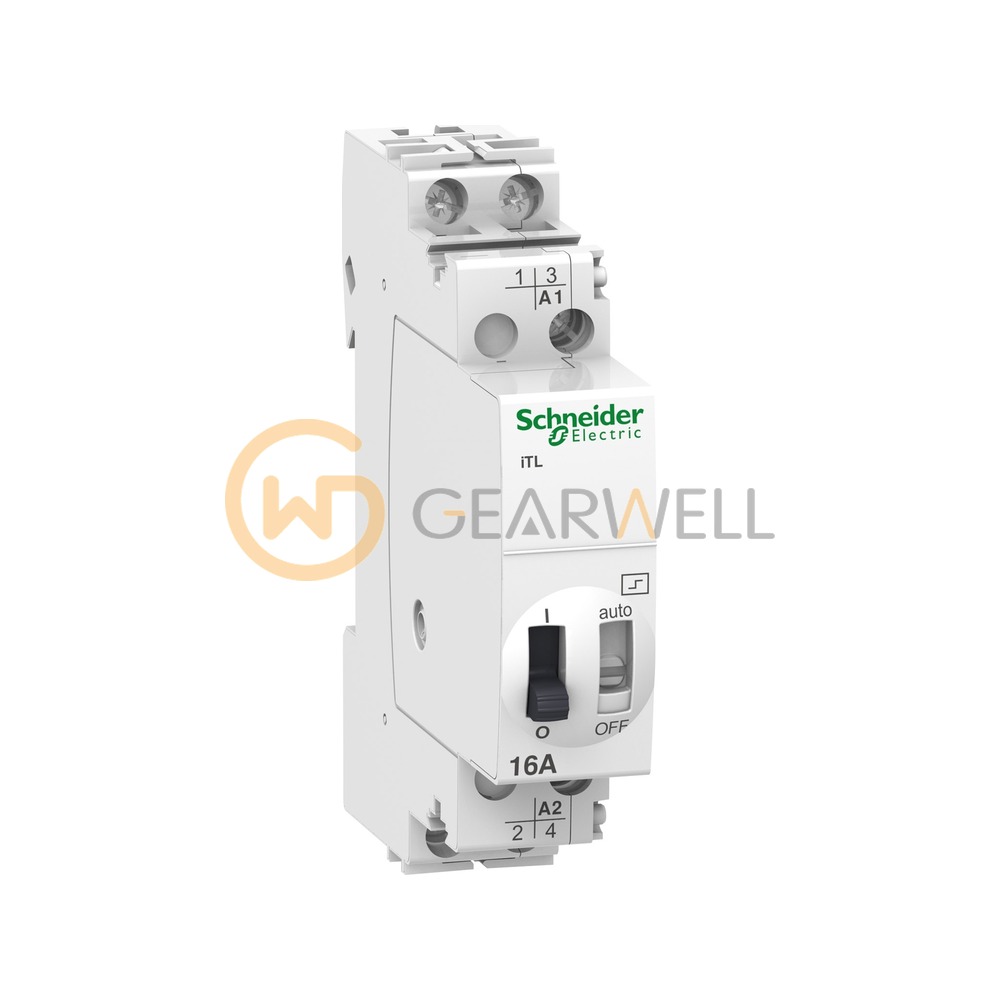

Schneider Electric A9C30112 Acti9 / Acti9 iTL Impulse relay
- Brand
- Schneider Electric
- Model
- A9C30112
- GEARWELL SKU
- GWP-000013895
- Category
- Relays & Controllers
Key specifications
- [In] rated current
- 16 A
- Device short name
- iTL
- Poles description
- 2P
- IP degree of protection
- IP20 conforming to IEC 60529 (on opening); IP40 conforming to IEC 60529 (in enclosure)
- Pole contact composition
- 2 NO
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric A9C30112 Acti9 / Acti9 iTL Impulse relay |
|---|---|
| Brand | Schneider Electric |
| Model | A9C30112 |
| Category | Relays & Controllers |
| [In] rated current | 16 A |
| Device short name | iTL |
| Poles description | 2P |
| IP degree of protection | IP20 conforming to IEC 60529 (on opening); IP40 conforming to IEC 60529 (in enclosure) |
| Pole contact composition | 2 NO |
| Product or component type | Impulse relay |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz; 12 V DC |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
