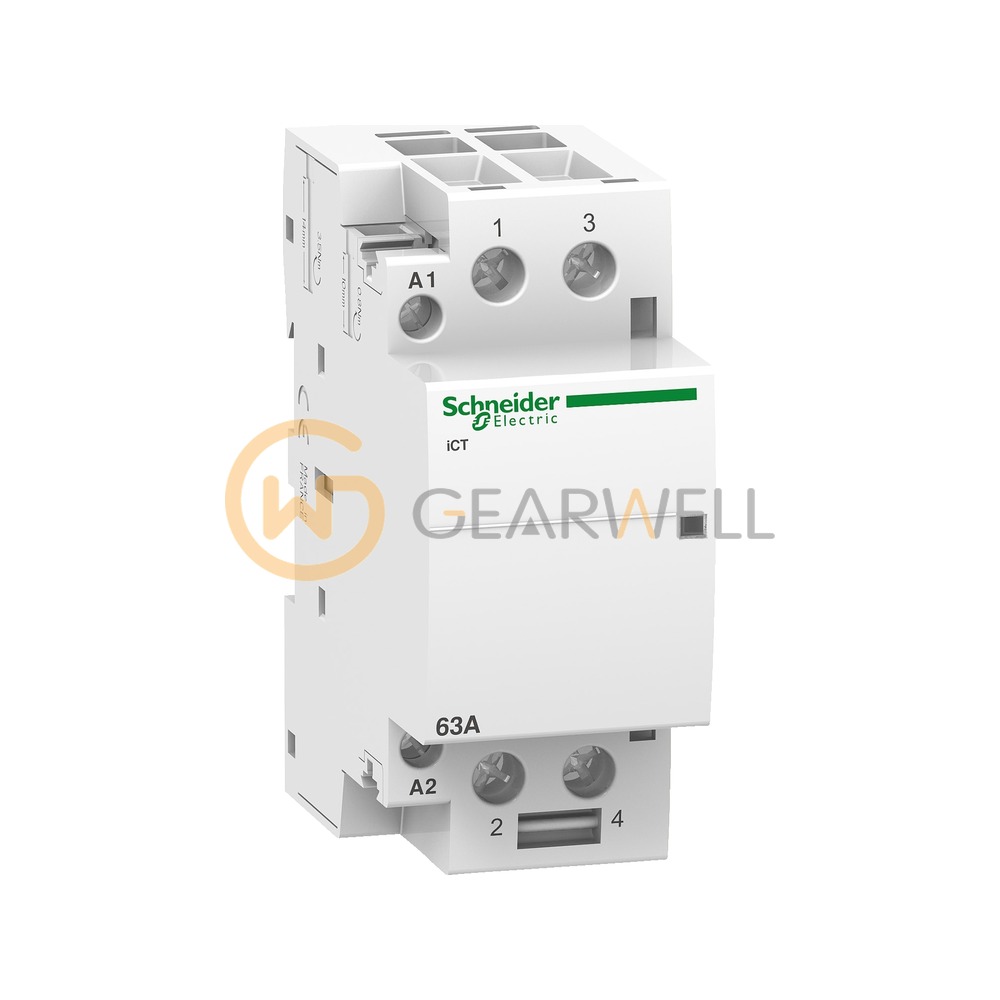

Schneider Electric A9C20862 Acti9 / Acti9 iCT Contactor
- Brand
- Schneider Electric
- Model
- A9C20862
- GEARWELL SKU
- GWP-000013894
- Category
- Contactors & Starters
Key specifications
- Device short name
- iCT
- Poles description
- 2P
- Pole contact composition
- 2 NO
- Product or component type
- Contactor
- [Uc] control circuit voltage
- 220...240 V AC 50 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric A9C20862 Acti9 / Acti9 iCT Contactor |
|---|---|
| Brand | Schneider Electric |
| Model | A9C20862 |
| Category | Contactors & Starters |
| Device short name | iCT |
| Poles description | 2P |
| Pole contact composition | 2 NO |
| Product or component type | Contactor |
| [Uc] control circuit voltage | 220...240 V AC 50 Hz |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Ie] rated operational current | 63 A AC-7A; 20 A AC-7B |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
