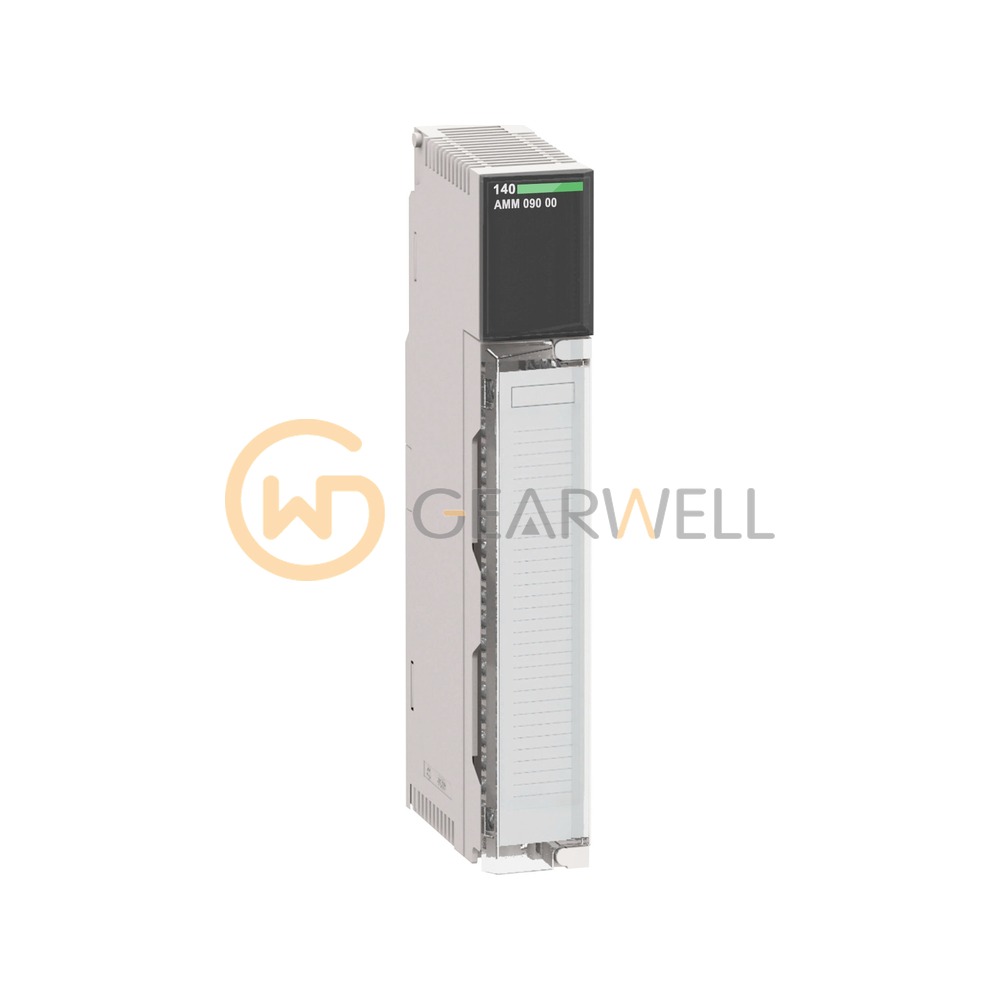

Schneider Electric 140AMM09000 Input/Output analog module
- Brand
- Schneider Electric
- Model
- 140AMM09000
- GEARWELL SKU
- GWP-000014179
- Category
- PLCs & I/O
Key specifications
- I/O modularity
- 6 channels
- Type of filter
- Single pole low pass - 3 dB at 21 Hz +/- 20 % input circuit
- Analogue input type
- Bipolar current +/- 20 mA - resolution: 15 bits DC; Bipolar voltage +/- 10 V - resolution: 16 bits DC; Bipolar voltage +/- 5 V - resolution: 15 bits DC; Unipolar current 0...20 mA - resolution: 15 bits DC; Unipolar offset current 4...20 mA - resolution: 14 bits DC; Unipolar offset voltage 1...5 V - resolution: 14 bits DC; Unipolar voltage 0...10 V - resolution: 16 bits DC; Unipolar voltage 0...5 V - resolution: 15 bits DC
- Analogue input number
- 4
- Addressing requirement
- 2 output words; 5 input words
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric 140AMM09000 Input/Output analog module |
|---|---|
| Brand | Schneider Electric |
| Model | 140AMM09000 |
| Category | PLCs & I/O |
| I/O modularity | 6 channels |
| Type of filter | Single pole low pass - 3 dB at 21 Hz +/- 20 % input circuit |
| Analogue input type | Bipolar current +/- 20 mA - resolution: 15 bits DC; Bipolar voltage +/- 10 V - resolution: 16 bits DC; Bipolar voltage +/- 5 V - resolution: 15 bits DC; Unipolar current 0...20 mA - resolution: 15 bits DC; Unipolar offset current 4...20 mA - resolution: 14 bits DC; Unipolar offset voltage 1...5 V - resolution: 14 bits DC; Unipolar voltage 0...10 V - resolution: 16 bits DC; Unipolar voltage 0...5 V - resolution: 15 bits DC |
| Analogue input number | 4 |
| Addressing requirement | 2 output words; 5 input words |
| Product or component type | Input/Output analog module |
