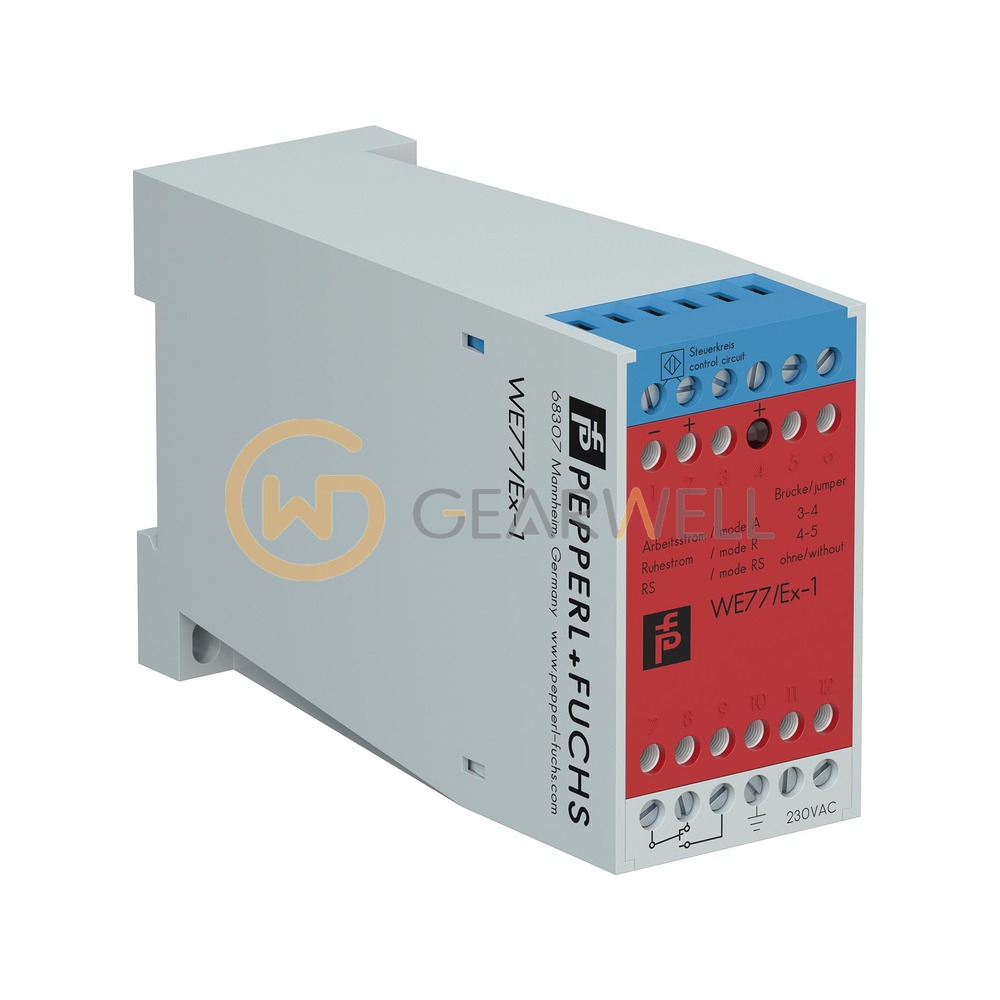

Pepperl+Fuchs WE77EX1 WE77/Ex-1 Switch Amplifier
- Brand
- Pepperl+Fuchs
- Model
- WE77EX1
- GEARWELL SKU
- GWP-000011743
- Category
- PLCs & I/O
Key specifications
- Input
- NAMUR (EN 60947-5-6) sensor or mechanical contact
- Output
- Signal, relay
- Power consumption
- approx. 2.3 VA
- Official type code
- WE77/Ex-1 115V (129199) or WE77/Ex-1 230V (129197)
- Line fault detection
- Breakage I ≤ 0.1 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs WE77EX1 WE77/Ex-1 Switch Amplifier |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | WE77EX1 |
| Category | PLCs & I/O |
| Input | NAMUR (EN 60947-5-6) sensor or mechanical contact |
| Output | Signal, relay |
| Power consumption | approx. 2.3 VA |
| Official type code | WE77/Ex-1 115V (129199) or WE77/Ex-1 230V (129197) |
| Line fault detection | Breakage I ≤ 0.1 mA |
| Supply voltage options | 103.5 ... 126 V AC (115V) / 198 ... 253 V AC (230V) (specify on order) |
