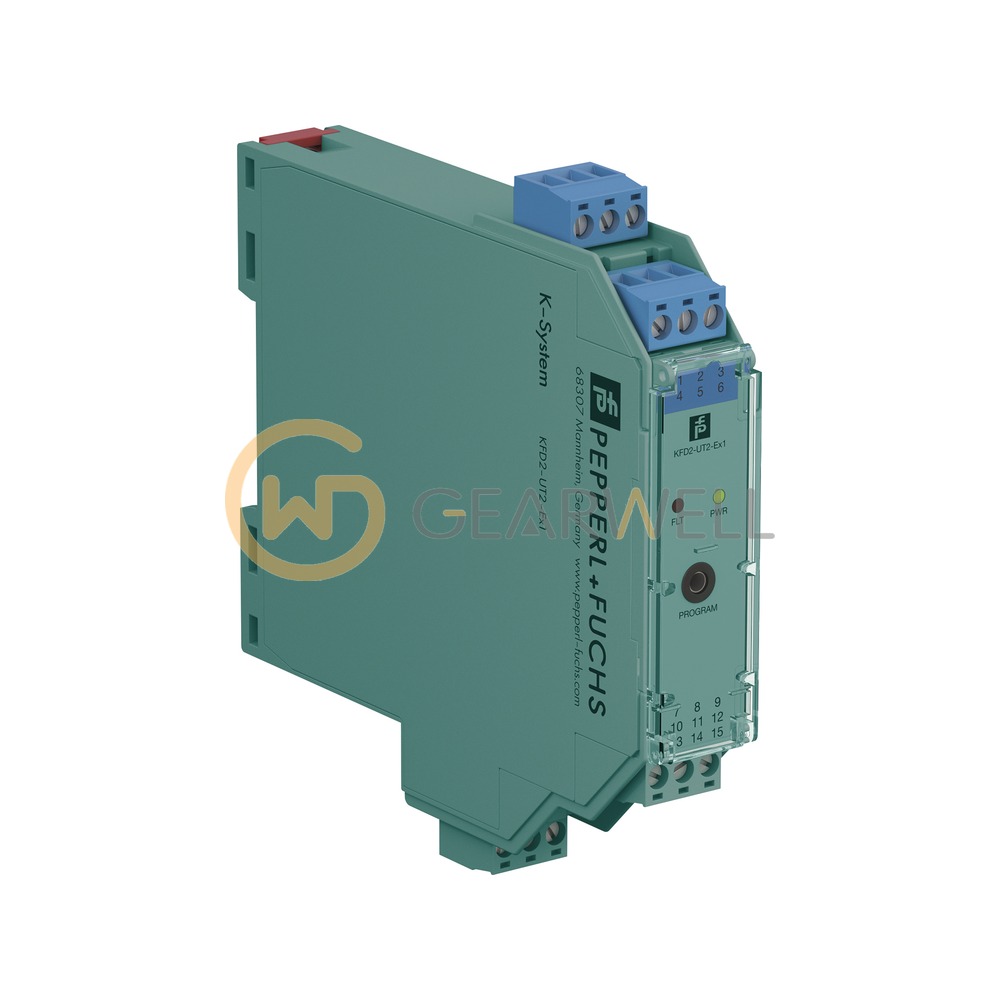

Pepperl+Fuchs 248764 KFD2-UT2-Ex1 Universal Temperature Converter
- Brand
- Pepperl+Fuchs
- Model
- 248764
- GEARWELL SKU
- GWP-000013555
- Category
- PLCs & I/O
Key specifications
- Mass
- approx. 130 g
- Input
- RTD (Pt, Cu, Ni), thermocouple, potentiometer, mV
- Output
- 0 ... 20 mA or 4 ... 20 mA
- Configuration
- via PACTware
- Rated voltage
- 20 ... 30 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs 248764 KFD2-UT2-Ex1 Universal Temperature Converter |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | 248764 |
| Category | PLCs & I/O |
| Mass | approx. 130 g |
| Input | RTD (Pt, Cu, Ni), thermocouple, potentiometer, mV |
| Output | 0 ... 20 mA or 4 ... 20 mA |
| Configuration | via PACTware |
| Rated voltage | 20 ... 30 V DC |
| Item number note | 248764 is the earlier item number of KFD2-UT2-Ex1 (official file names 248764_ger/edb indexed; current item 70157025) |
| Type designation | KFD2-UT2-Ex1 |
| Ambient temperature | -20 ... 60 °C |
| Safety Integrity Level | SIL 2 |
