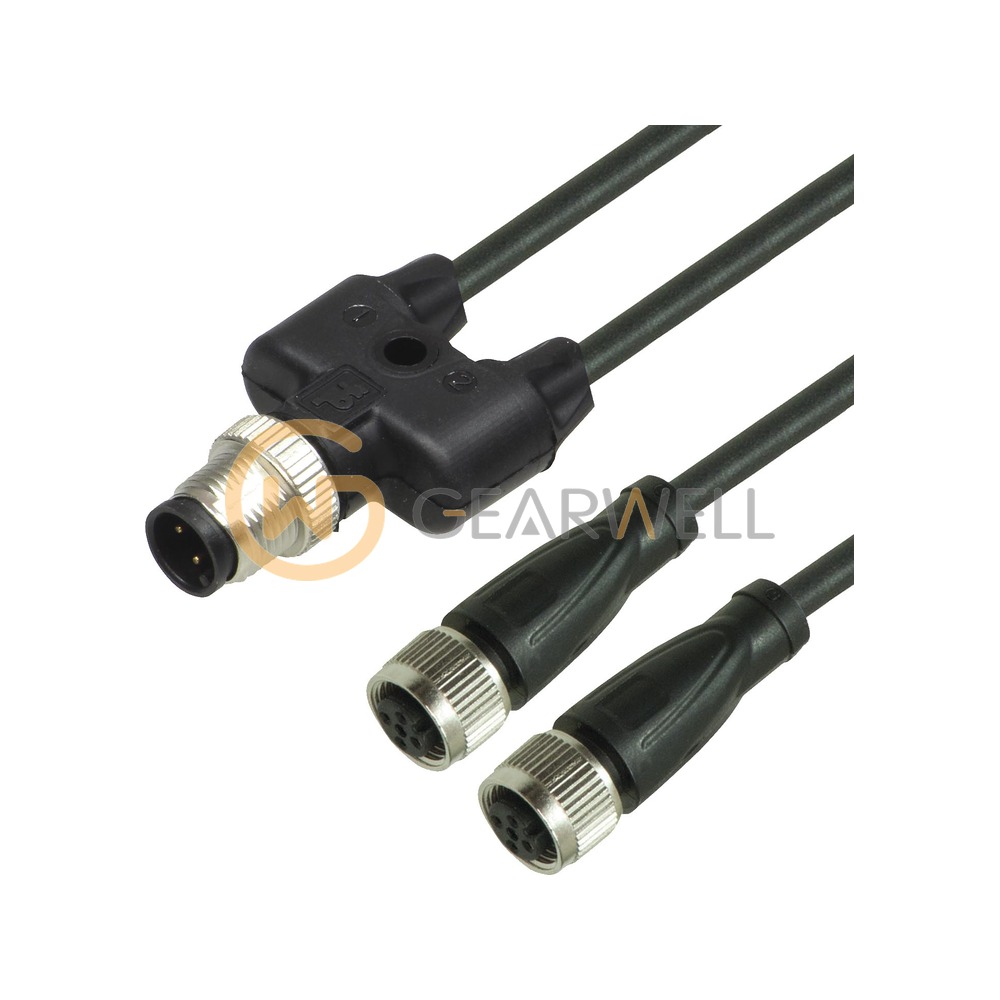

Pepperl+Fuchs V1-G-BK0,3M-PUR-A-T-V1-G M12 Y Connection Cable
- Brand
- Pepperl+Fuchs
- Model
- V1-G-BK0,3M-PUR-A-T-V1-G
- GEARWELL SKU
- GWP-000014065
- Category
- Terminals, Cables & Connectors
Key specifications
- Sheathing
- PUR based on polyether
- Connection
- M12 plug straight A-coded 4-pin to 2x M12 socket straight A-coded 4-pin
- Cable length
- L1 = 0.3 m, L2 = 0.3 m
- Number of cores
- 4
- Sheath diameter
- 4.3 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs V1-G-BK0,3M-PUR-A-T-V1-G M12 Y Connection Cable |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | V1-G-BK0,3M-PUR-A-T-V1-G |
| Category | Terminals, Cables & Connectors |
| Sheathing | PUR based on polyether |
| Connection | M12 plug straight A-coded 4-pin to 2x M12 socket straight A-coded 4-pin |
| Cable length | L1 = 0.3 m, L2 = 0.3 m |
| Number of cores | 4 |
| Sheath diameter | 4.3 mm |
| Operating current | max. 4 A |
| Operating voltage | max. 48 V AC / 60 V DC |
| Degree of protection | IP66 / IP68 / IP69 |
