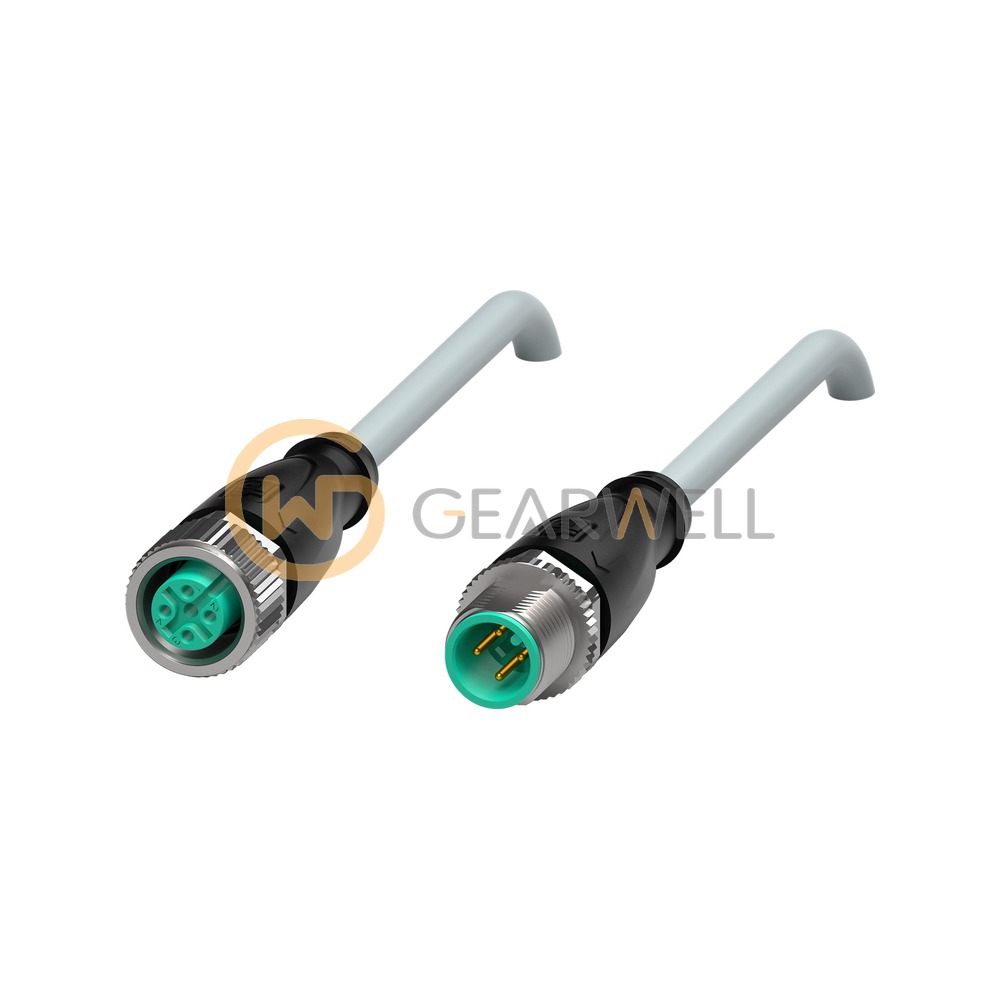

Pepperl+Fuchs V1-G-2M-PUR-ABG-V1-G M12 Shielded Connection Cable
- Brand
- Pepperl+Fuchs
- Model
- V1-G-2M-PUR-ABG-V1-G
- GEARWELL SKU
- GWP-000014053
- Category
- Terminals, Cables & Connectors
Key specifications
- Shield
- tinned copper braiding, 85 % coverage
- Connector 1
- M12 socket, straight, 4-pin, A-coded
- Connector 2
- M12 plug, straight, 4-pin, A-coded
- Part number
- 223646
- Cable length
- 2 m
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs V1-G-2M-PUR-ABG-V1-G M12 Shielded Connection Cable |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | V1-G-2M-PUR-ABG-V1-G |
| Category | Terminals, Cables & Connectors |
| Shield | tinned copper braiding, 85 % coverage |
| Connector 1 | M12 socket, straight, 4-pin, A-coded |
| Connector 2 | M12 plug, straight, 4-pin, A-coded |
| Part number | 223646 |
| Cable length | 2 m |
| Cable sheath | PUR based on polyether |
| Number of cores | 4 |
| Operating current | max. 4 A |
| Operating voltage | max. 250 V AC/DC |
| Core cross section | 0.34 mm² |
| Degree of protection | IP66 / IP68 / IP69 |
