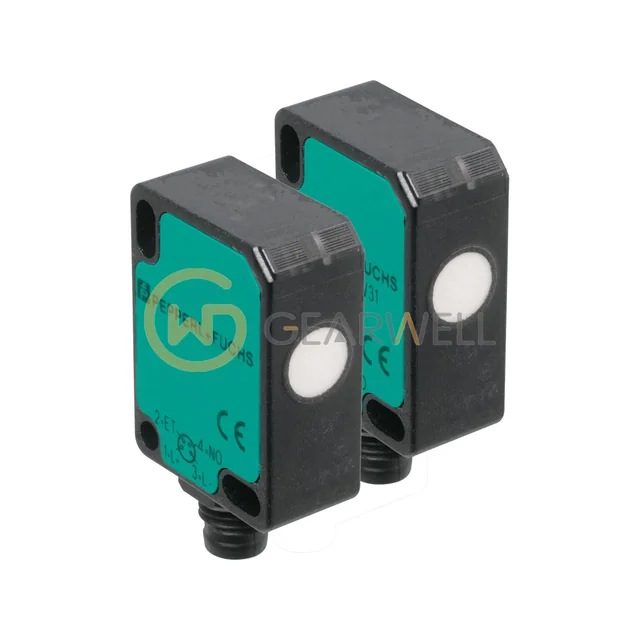

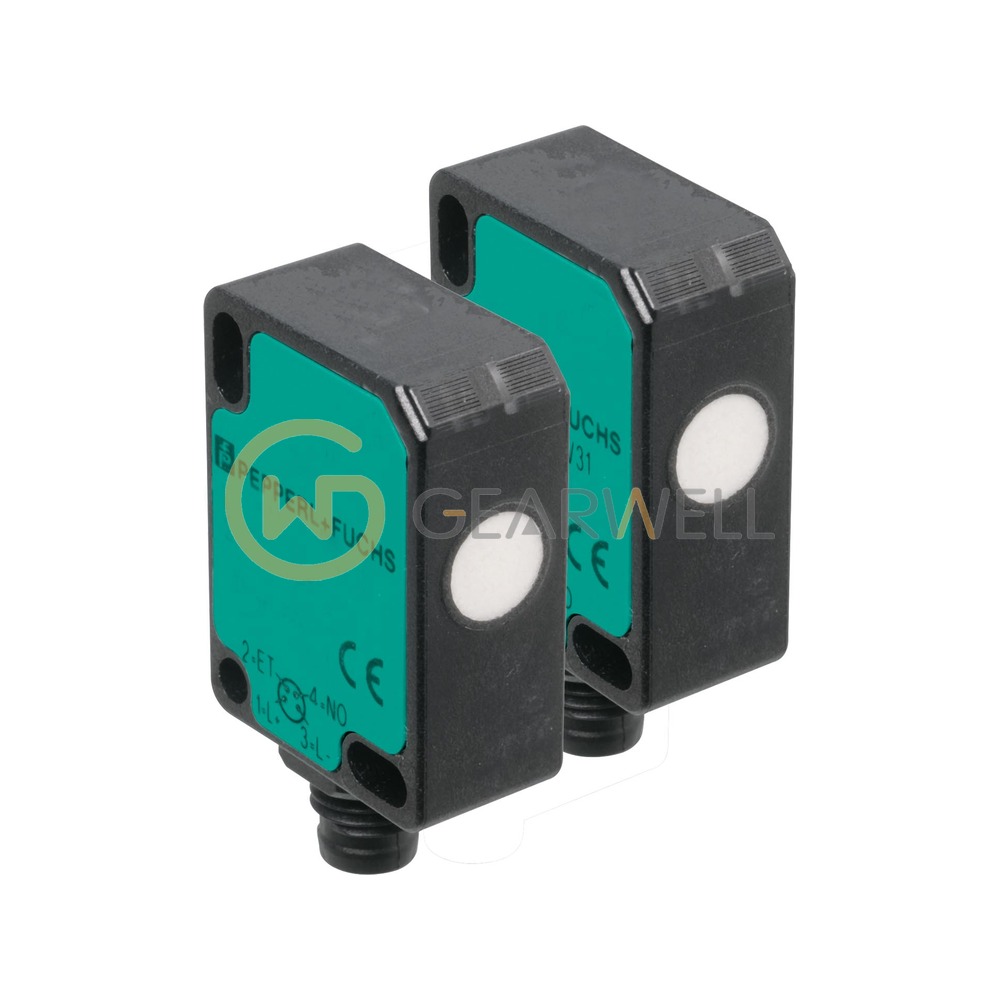

Pepperl+Fuchs UBE800-F77-SE2-V31 Ultrasonic Through-Beam Sensor
- Brand
- Pepperl+Fuchs
- Model
- UBE800-F77-SE2-V31
- GEARWELL SKU
- GWP-000009775
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Output type
- 1 switch output PNP, NO
- Sensing range
- 0 ... 800 mm emitter/receiver spacing
- Connection type
- M8 x 1 connector, 4-pin
- Operating voltage
- 20 ... 30 V DC
- Switching frequency
- 100 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs UBE800-F77-SE2-V31 Ultrasonic Through-Beam Sensor |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | UBE800-F77-SE2-V31 |
| Category | Proximity & Photoelectric Sensors |
| Output type | 1 switch output PNP, NO |
| Sensing range | 0 ... 800 mm emitter/receiver spacing |
| Connection type | M8 x 1 connector, 4-pin |
| Operating voltage | 20 ... 30 V DC |
| Switching frequency | 100 Hz |
| Degree of protection | IP67 |
