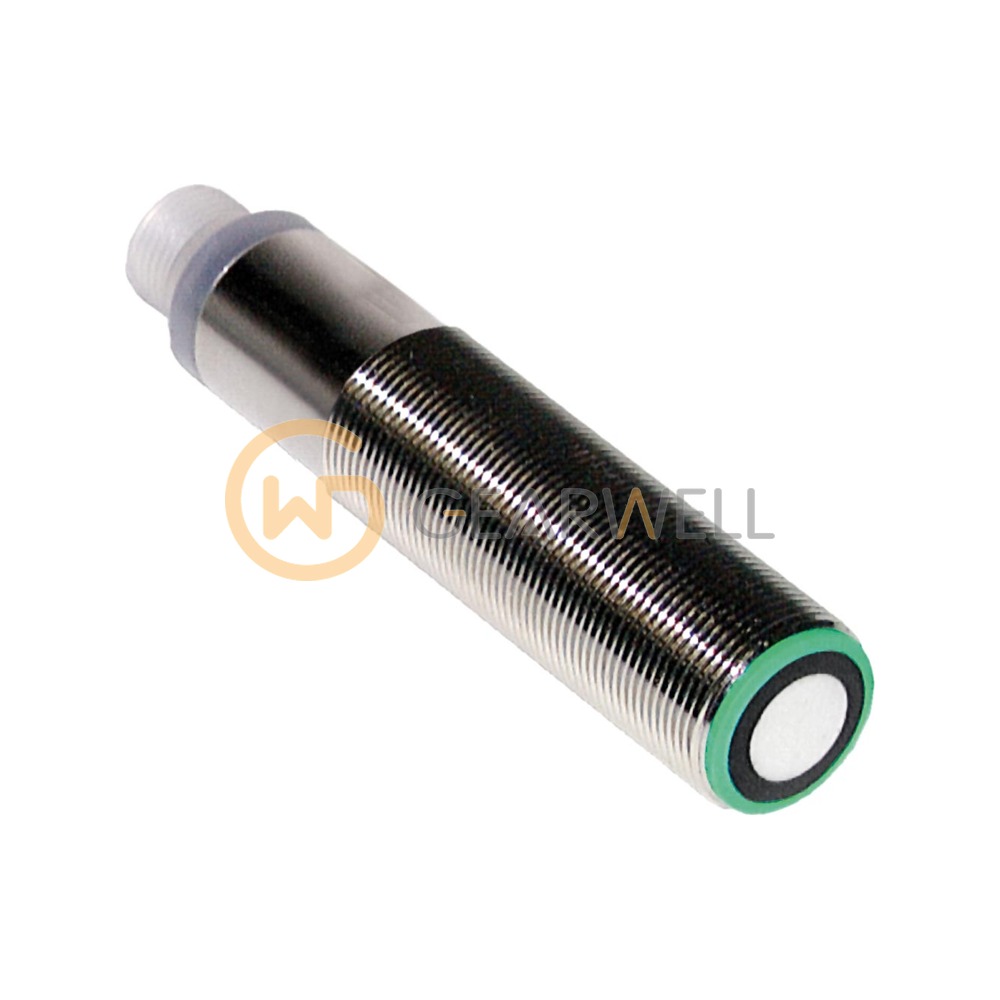

Pepperl+Fuchs UB1000-18GM75-U-V15 Ultrasonic Sensor, 0-10 V
- Brand
- Pepperl+Fuchs
- Model
- UB1000-18GM75-U-V15
- GEARWELL SKU
- GWP-000011741
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- Brass, nickel-plated
- Dead band
- 0 ... 70 mm
- Connection
- Connector plug M12 x 1, 5-pin
- Output type
- 1 analog output 0 ... 10 V
- Part number
- 204536
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs UB1000-18GM75-U-V15 Ultrasonic Sensor, 0-10 V |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | UB1000-18GM75-U-V15 |
| Category | Proximity & Photoelectric Sensors |
| Housing | Brass, nickel-plated |
| Dead band | 0 ... 70 mm |
| Connection | Connector plug M12 x 1, 5-pin |
| Output type | 1 analog output 0 ... 10 V |
| Part number | 204536 |
| Sensing range | 70 ... 1000 mm |
| Operating voltage | 15 ... 30 V DC |
| Transducer frequency | approx. 255 kHz |
