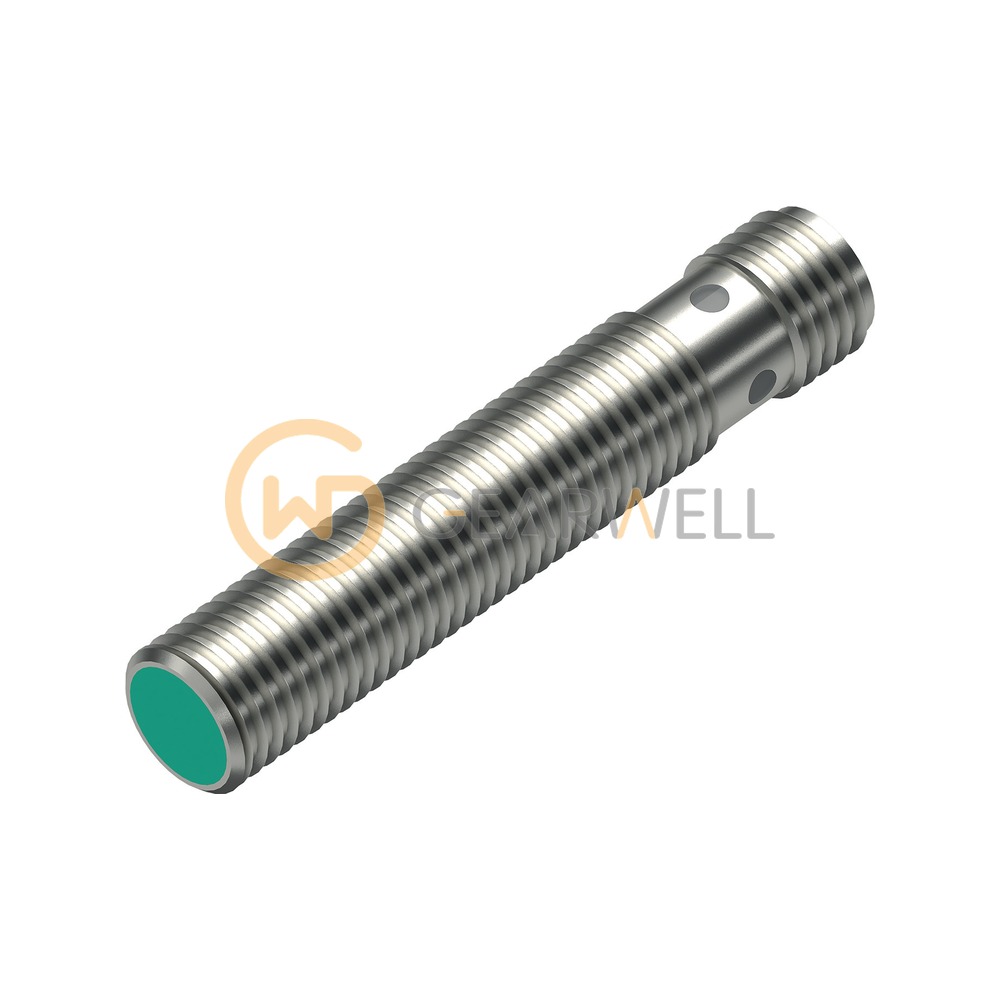

Pepperl+Fuchs NBB4-12GM50-E0-V1 Inductive Proximity Sensor
- Brand
- Pepperl+Fuchs
- Model
- NBB4-12GM50-E0-V1
- GEARWELL SKU
- GWP-000009770
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Output type
- NPN, normally open (NO), 3-wire
- Installation
- flush
- Operating voltage
- 6 ... 36 V
- Ambient temperature
- -40 ... 85 °C
- Switching frequency
- 0 ... 2550 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs NBB4-12GM50-E0-V1 Inductive Proximity Sensor |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | NBB4-12GM50-E0-V1 |
| Category | Proximity & Photoelectric Sensors |
| Output type | NPN, normally open (NO), 3-wire |
| Installation | flush |
| Operating voltage | 6 ... 36 V |
| Ambient temperature | -40 ... 85 °C |
| Switching frequency | 0 ... 2550 Hz |
| Degree of protection | IP65 / IP66 / IP67 / IP68 / IP69 |
| Rated operating distance | 4 mm |
