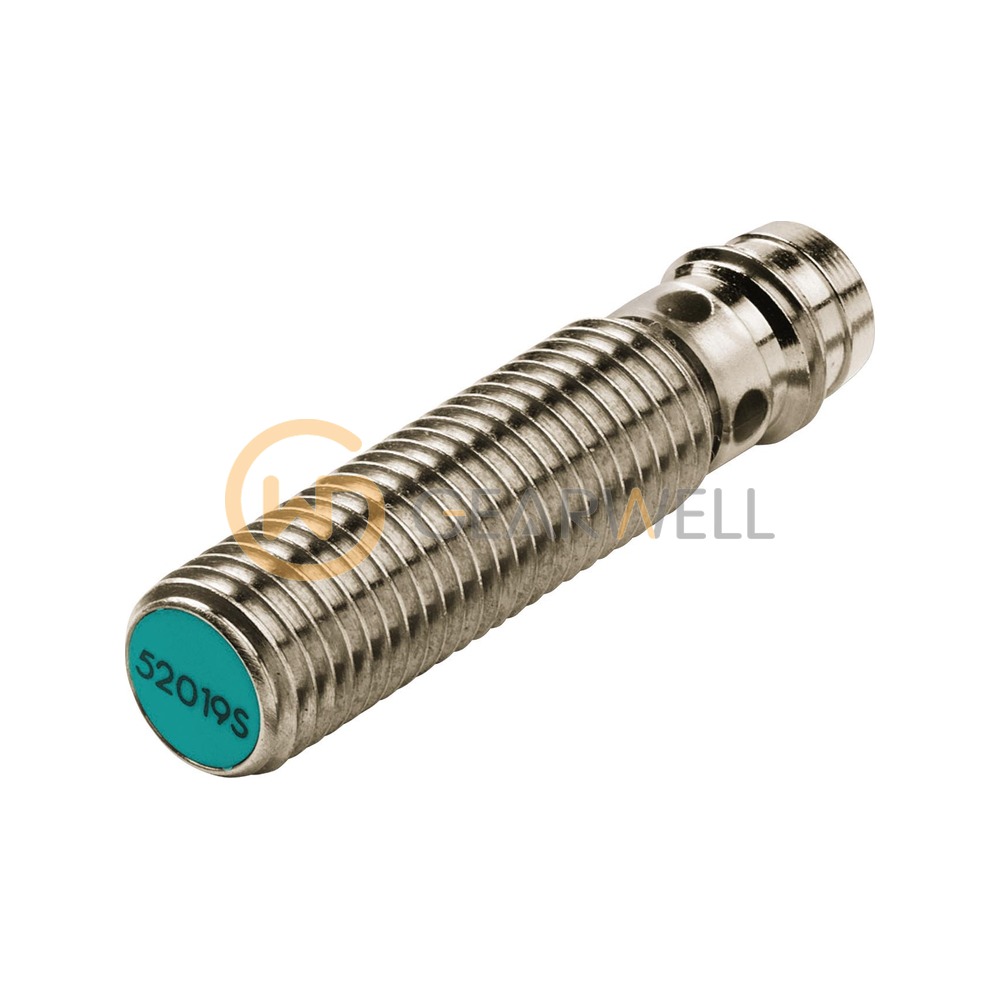

Pepperl+Fuchs NBB2-8GM25-E2-V3 M8 Inductive Proximity Sensor
- Brand
- Pepperl+Fuchs
- Model
- NBB2-8GM25-E2-V3
- GEARWELL SKU
- GWP-000014044
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Output
- PNP, normally open (NO), 3-wire
- Connection
- connector plug M8 x 1, 3-pin
- Item number
- 304615-0031
- Installation
- flush
- Housing material
- brass, nickel-plated
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs NBB2-8GM25-E2-V3 M8 Inductive Proximity Sensor |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | NBB2-8GM25-E2-V3 |
| Category | Proximity & Photoelectric Sensors |
| Output | PNP, normally open (NO), 3-wire |
| Connection | connector plug M8 x 1, 3-pin |
| Item number | 304615-0031 |
| Installation | flush |
| Housing material | brass, nickel-plated |
| Operating current | 0 ... 100 mA |
| Operating voltage | 5 ... 30 V |
| Ambient temperature | -40 ... 85 °C |
| Switching frequency | 0 ... 6000 Hz |
| Degree of protection | IP65 / IP66 / IP67 |
| Rated operating distance | 2 mm |
