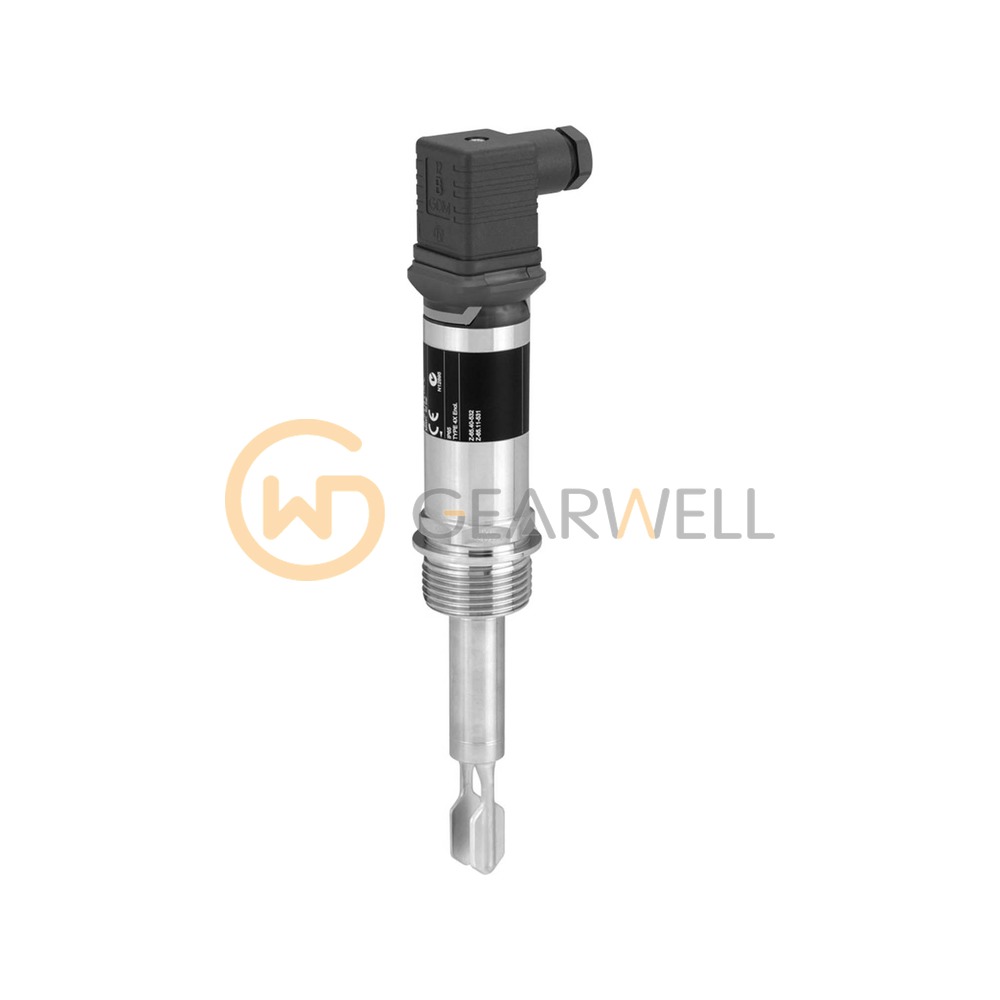

Pepperl+Fuchs LVL-A7-BG4B-E5PU-CG-EMS Vibracon Vibration Limit Switch
- Brand
- Pepperl+Fuchs
- Model
- LVL-A7-BG4B-E5PU-CG-EMS
- GEARWELL SKU
- GWP-000017035
- Category
- Pressure, Flow & Temperature
Key specifications
- Output
- switching output, max. 250 mA
- Density
- min. 0.7 g/cm3
- Approval
- cCSAus Listed, General Purpose
- Connection
- valve connector M16
- Part number
- 275573-100030
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs LVL-A7-BG4B-E5PU-CG-EMS Vibracon Vibration Limit Switch |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | LVL-A7-BG4B-E5PU-CG-EMS |
| Category | Pressure, Flow & Temperature |
| Output | switching output, max. 250 mA |
| Density | min. 0.7 g/cm3 |
| Approval | cCSAus Listed, General Purpose |
| Connection | valve connector M16 |
| Part number | 275573-100030 |
| Rated voltage | 10 ... 35 V DC |
| Process pressure | -1 ... +40 bar |
| Medium temperature | -40 ... 150 °C |
| Process connection | thread G1 acc. to ISO 228 |
| Degree of protection | IP65, NEMA 4X |
