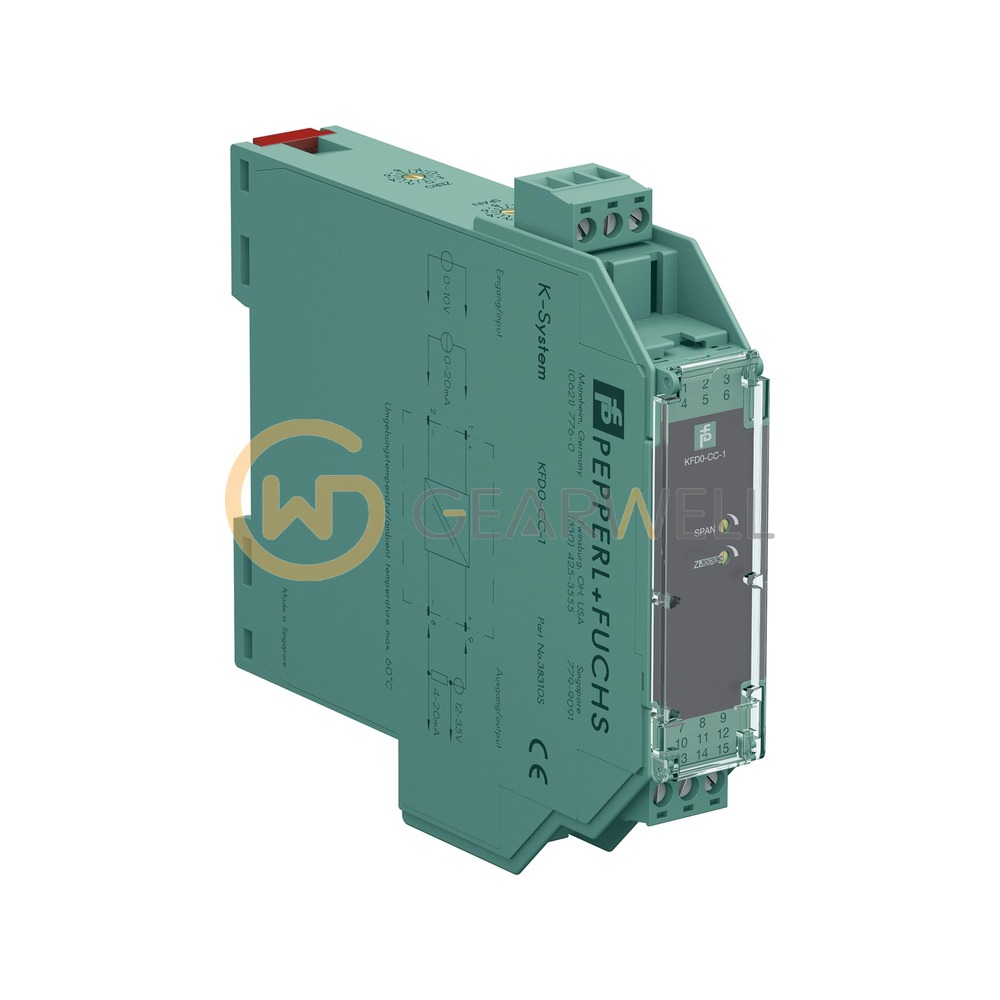

Pepperl+Fuchs KFD0-CC-1 K-System Current/Voltage Converter
- Brand
- Pepperl+Fuchs
- Model
- KFD0-CC-1
- GEARWELL SKU
- GWP-000011736
- Category
- PLCs & I/O
Key specifications
- Part number
- 038310
- Signal type
- Analog input
- Rated voltage
- 12 ... 35 V DC, loop powered
- Current output
- 4 ... 20 mA, limited to ≤ 35 mA
- Power dissipation
- 0.4 W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs KFD0-CC-1 K-System Current/Voltage Converter |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | KFD0-CC-1 |
| Category | PLCs & I/O |
| Part number | 038310 |
| Signal type | Analog input |
| Rated voltage | 12 ... 35 V DC, loop powered |
| Current output | 4 ... 20 mA, limited to ≤ 35 mA |
| Power dissipation | 0.4 W |
| Current input range | 0 ... 20 mA, load ≤ 50 Ω |
| Voltage input range | 0 ... 10 V, load ≥ 100 kΩ |
| Accuracy after calibration | 0.1 % of full-scale value |
