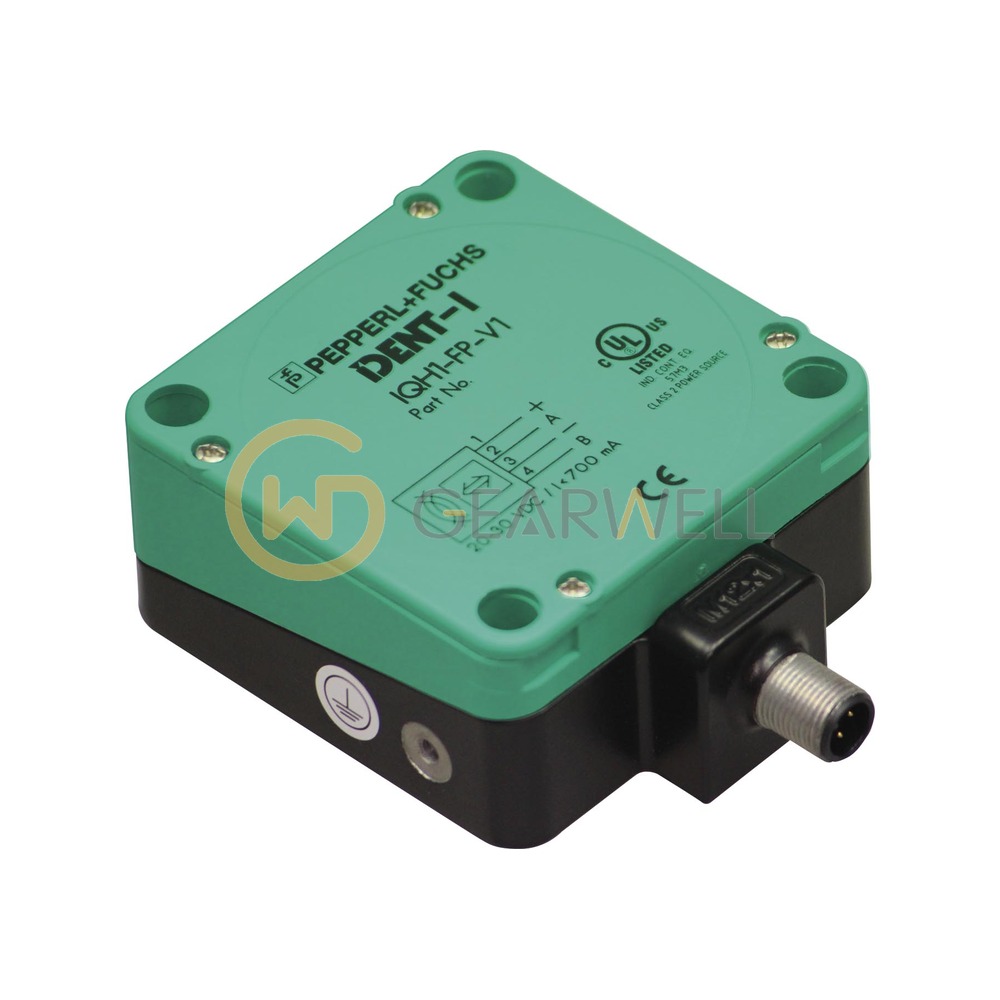

Pepperl+Fuchs IQH1-FP-V1 13.56 MHz RFID Read/Write Head
- Brand
- Pepperl+Fuchs
- Model
- IQH1-FP-V1
- GEARWELL SKU
- GWP-000014033
- Category
- Industrial Communication
Key specifications
- Connection
- connector M12 x 1
- Item number
- 204623
- RFID standard
- ISO/IEC 15693-2, ISO/IEC 15693-3, ISO/IEC 18000-3
- Transfer rate
- 26 kBit/s
- Power consumption
- ≤ 1.3 W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs IQH1-FP-V1 13.56 MHz RFID Read/Write Head |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | IQH1-FP-V1 |
| Category | Industrial Communication |
| Connection | connector M12 x 1 |
| Item number | 204623 |
| RFID standard | ISO/IEC 15693-2, ISO/IEC 15693-3, ISO/IEC 18000-3 |
| Transfer rate | 26 kBit/s |
| Power consumption | ≤ 1.3 W |
| Ambient temperature | -25 ... 70 °C |
| Operating frequency | 13.56 MHz |
| Read/write distance | 0 ... 130 mm |
| Degree of protection | IP67 |
