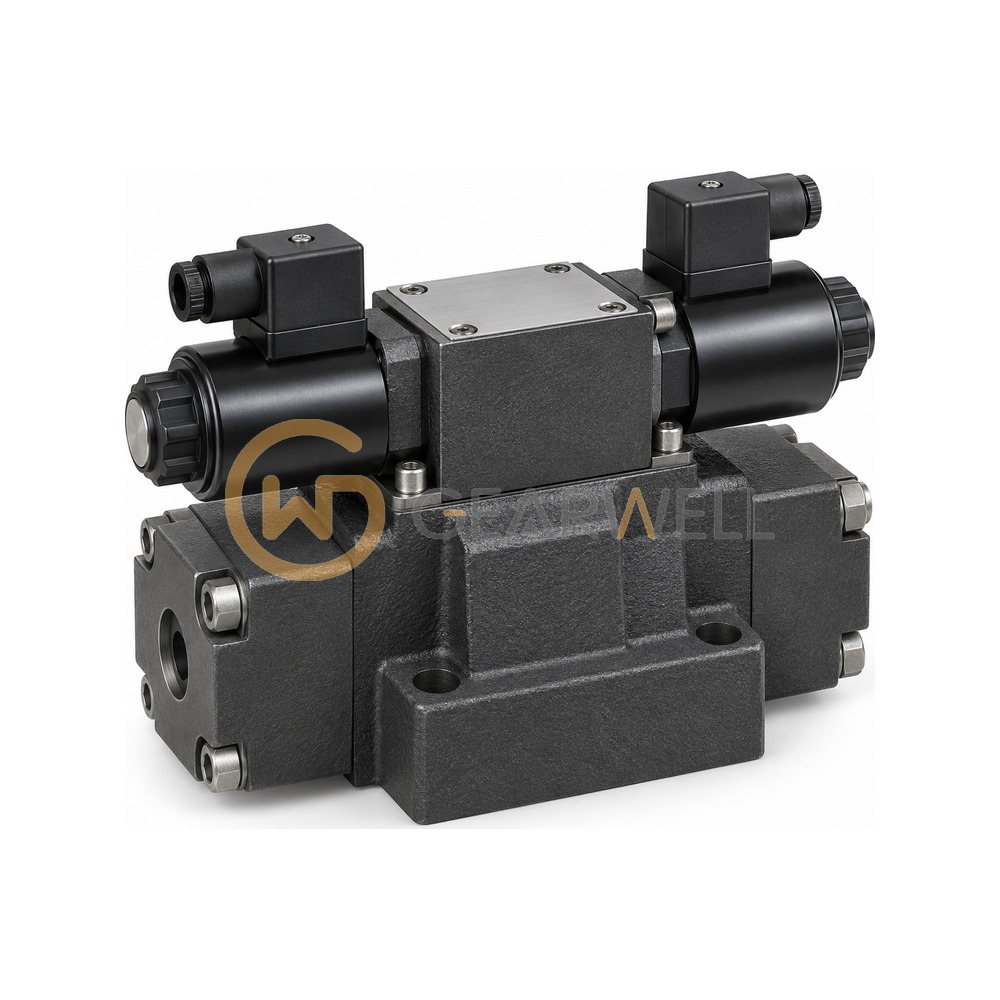

PARKER D61VW9C3Y 51 D61VW Pilot Operated Directional Control Valve
- Brand
- PARKER
- Model
- D61VW9C3Y 51
- GEARWELL SKU
- GWP-000016248
- Category
- Hydraulic Valves
Key specifications
- Style
- C = double solenoid, 3-position, spring centered
- Interface
- NFPA D08, CETOP 08, NG 25
- Spool code
- 9 (as collected)
- Nominal flow
- 189 L/min (50 GPM)
- Seal options
- N (Nitrile) / V (Fluorocarbon) (specify on order)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PARKER D61VW9C3Y 51 D61VW Pilot Operated Directional Control Valve |
|---|---|
| Brand | PARKER |
| Model | D61VW9C3Y 51 |
| Category | Hydraulic Valves |
| Style | C = double solenoid, 3-position, spring centered |
| Interface | NFPA D08, CETOP 08, NG 25 |
| Spool code | 9 (as collected) |
| Nominal flow | 189 L/min (50 GPM) |
| Seal options | N (Nitrile) / V (Fluorocarbon) (specify on order) |
| Code suffix "51" | as collected; not listed in the official model-number table |
| Solenoid voltage | Y = 120/60 - 110/50 VAC |
| Max operating pressure | 207 bar (3000 PSI) |
| Pilot supply and drain | 3 = internal pilot with check, external drain |
| Weight (double solenoid) | 12.1 kg |
