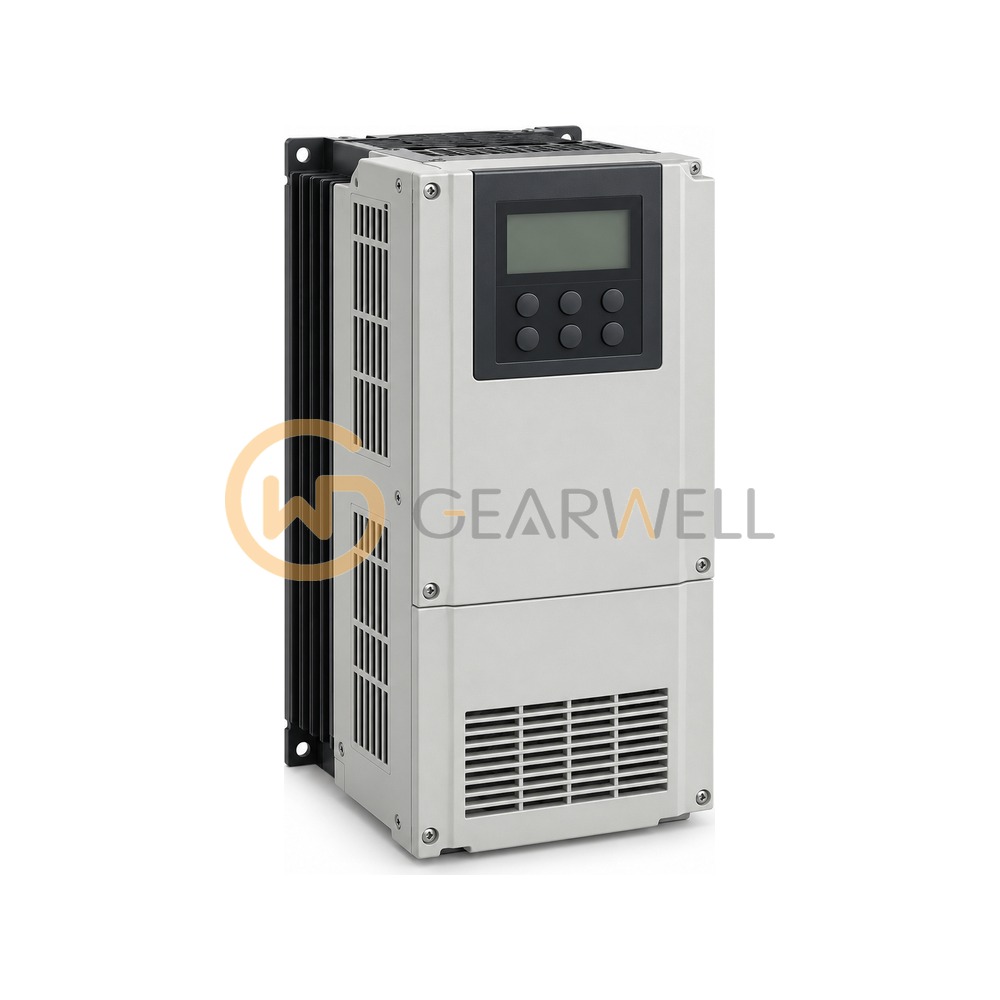

PARKER 890SD-433316G2-000-1A000 AC890 Standalone Drive
- Brand
- PARKER
- Model
- 890SD-433316G2-000-1A000
- GEARWELL SKU
- GWP-000016246
- Category
- Variable Frequency Drives
Key specifications
- Supply
- 43 = 400/460 V, 3 ph
- Frame size
- G
- Motor power
- 160 kW
- Brake switch
- 0 = not fitted (optional on frames G-J)
- Options F / A / B
- 0 / 0 / 0 = none fitted
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PARKER 890SD-433316G2-000-1A000 AC890 Standalone Drive |
|---|---|
| Brand | PARKER |
| Model | 890SD-433316G2-000-1A000 |
| Category | Variable Frequency Drives |
| Supply | 43 = 400/460 V, 3 ph |
| Frame size | G |
| Motor power | 160 kW |
| Brake switch | 0 = not fitted (optional on frames G-J) |
| Options F / A / B | 0 / 0 / 0 = none fitted |
| Motor power (HP) | 250 HP |
| Parker listing | not found as a listed part on parker.com; code decoded from the 890 product code table (sibling 890SD-433361G2-000-1A000 is listed) |
| Product family | 890SD = 890 Standalone Drive |
| Auxiliary supply | 2 = 230 V 1 ph |
| Output current (vector mode, 400 V) | 316 A |
| Special option / performance / destination | 00 = none / 1 = Advanced / A = English (50 Hz) |
