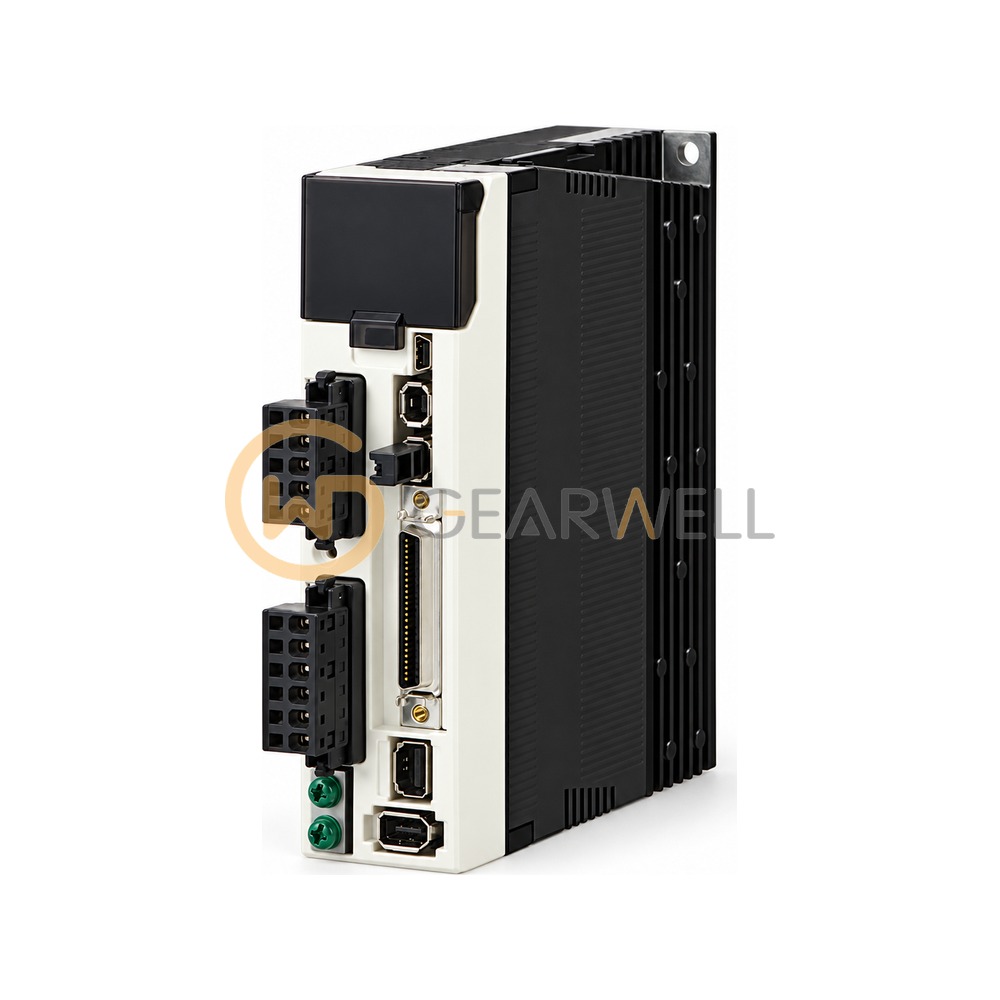

PANASONIC MCDKT3520CA1 MINAS A5Ⅱ C-Frame Servo Driver
- Brand
- PANASONIC
- Model
- MCDKT3520CA1
- GEARWELL SKU
- GWP-000015788
- Category
- Servo Systems
Key specifications
- Type
- Speed, position, torque, full-closed type
- Frame
- C-Frame
- Series
- A5Ⅱ series
- Interface
- Analog/Pulse
- Supply voltage
- Single/3-phase 200 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PANASONIC MCDKT3520CA1 MINAS A5Ⅱ C-Frame Servo Driver |
|---|---|
| Brand | PANASONIC |
| Model | MCDKT3520CA1 |
| Category | Servo Systems |
| Type | Speed, position, torque, full-closed type |
| Frame | C-Frame |
| Series | A5Ⅱ series |
| Interface | Analog/Pulse |
| Supply voltage | Single/3-phase 200 V |
| Code suffix "CA1" | as collected; not listed in the official model-number table |
| Encoder feedback | 17-bit absolute / 20-bit incremental, serial |
| Base part number (official) | MCDKT3520 |
| Current detector current rating | 20 A |
| Power device max. current rating | 30 A |
