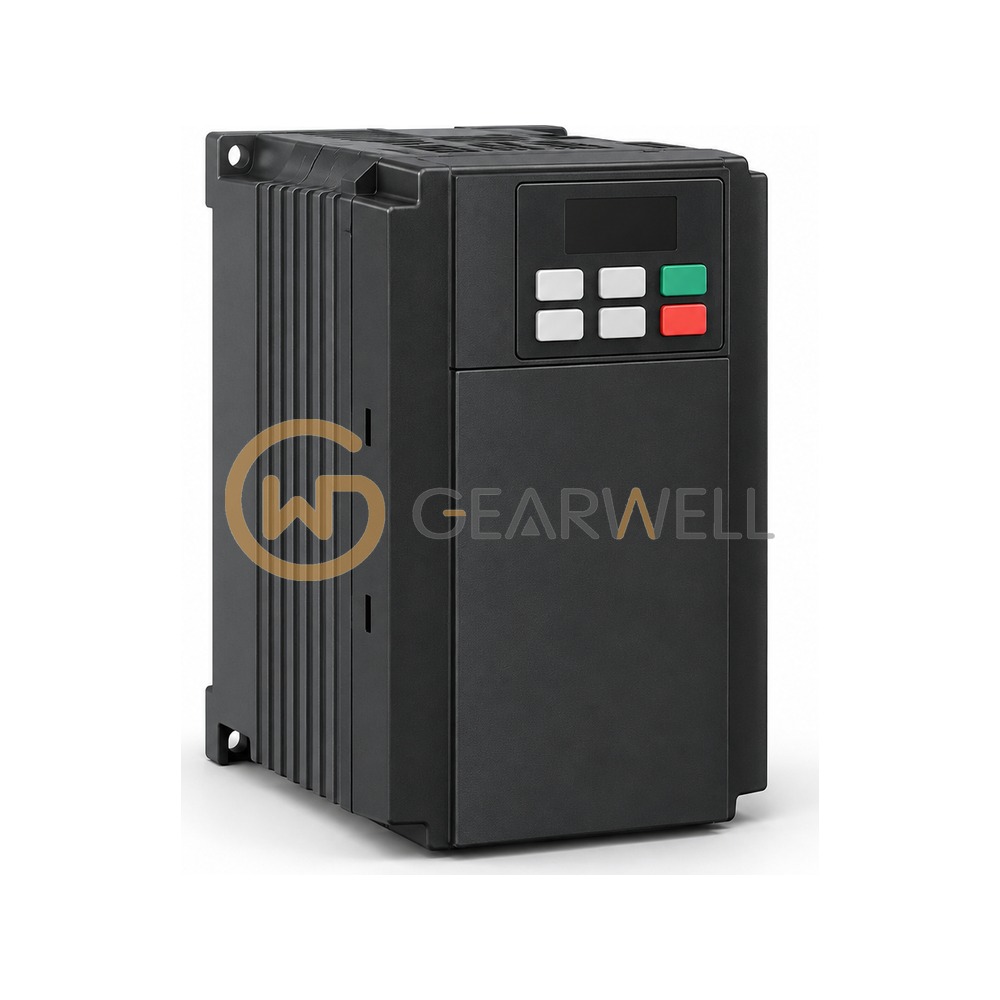

PANASONIC AMK5002P24 MK500 2.2 kW 400 V Vector Inverter
- Brand
- PANASONIC
- Model
- AMK5002P24
- GEARWELL SKU
- GWP-000015778
- Category
- Variable Frequency Drives
Key specifications
- Mass
- 1.3 kg
- Series
- MK500 vector inverter
- Input power
- 3-phase 380 V 50/60 Hz
- Control method
- V/F, open-loop vector, closed-loop vector
- Rated input current
- 9 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PANASONIC AMK5002P24 MK500 2.2 kW 400 V Vector Inverter |
|---|---|
| Brand | PANASONIC |
| Model | AMK5002P24 |
| Category | Variable Frequency Drives |
| Mass | 1.3 kg |
| Series | MK500 vector inverter |
| Input power | 3-phase 380 V 50/60 Hz |
| Control method | V/F, open-loop vector, closed-loop vector |
| Rated input current | 9 A |
| Applicable motor output (light load) | 3.7 kW |
| Rated output current (standard load) | 6 A |
| Applicable motor output (standard load) | 2.2 kW |
