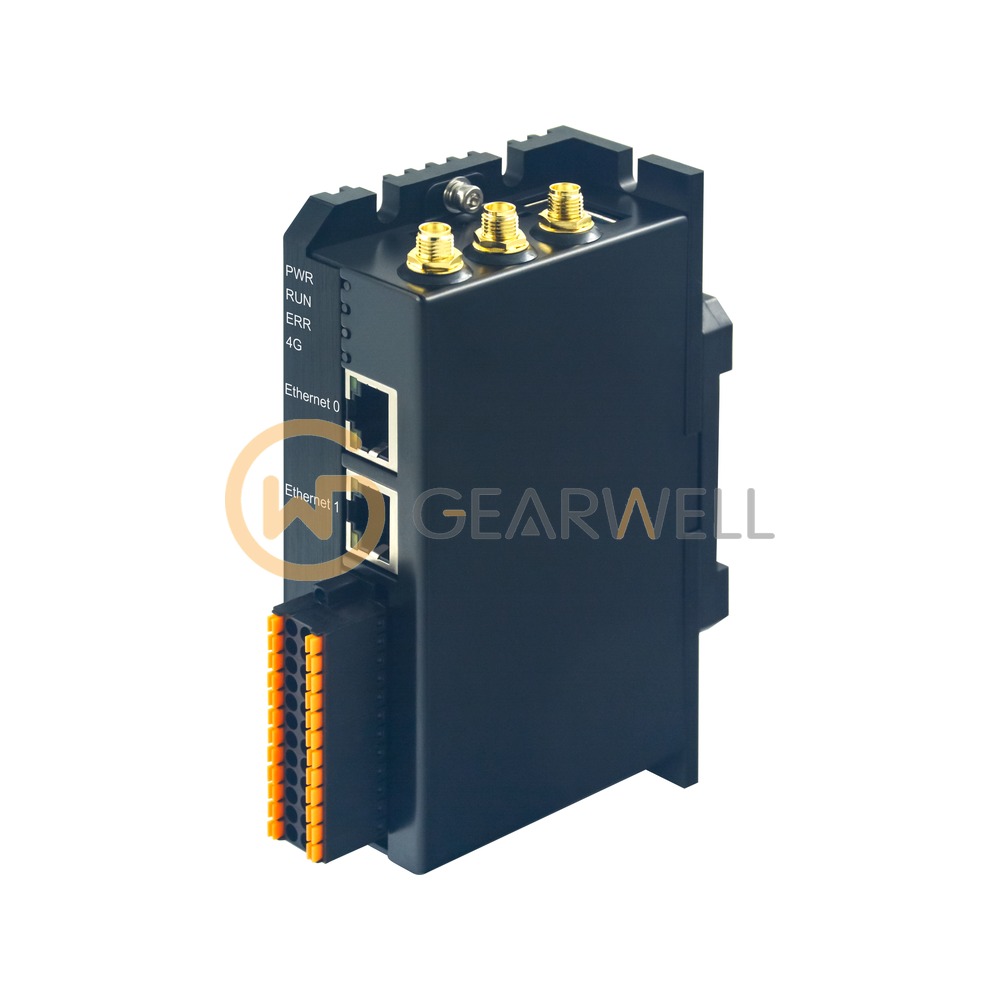

OpenEmbed EdgeBox-RPI5 Industrial Edge Controller
- Brand
- OpenEmbed
- Model
- EdgeBox-RPI5
- GEARWELL SKU
- GWP-000012730
- Category
- PLCs & I/O
Key specifications
- CPU
- Broadcom BCM2712, quad-core A76, up to 2.4 GHz
- Ethernet
- 2 x RJ45 10/100/1000M
- Dimensions
- 124 x 68 x 35 mm
- Digital I/O
- 6 DI / 6 DO
- Power supply
- 10.8 - 36 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | OpenEmbed EdgeBox-RPI5 Industrial Edge Controller |
|---|---|
| Brand | OpenEmbed |
| Model | EdgeBox-RPI5 |
| Category | PLCs & I/O |
| CPU | Broadcom BCM2712, quad-core A76, up to 2.4 GHz |
| Ethernet | 2 x RJ45 10/100/1000M |
| Dimensions | 124 x 68 x 35 mm |
| Digital I/O | 6 DI / 6 DO |
| Power supply | 10.8 - 36 V DC |
| Serial interfaces | 1 x isolated RS485, 1 x RS232 |
| Configuration options | A-2G16G / A-4G64G-WIFI (memory/eMMC/Wi-Fi, specify on order) |
| Operating temperature | -20 to 60 °C |
