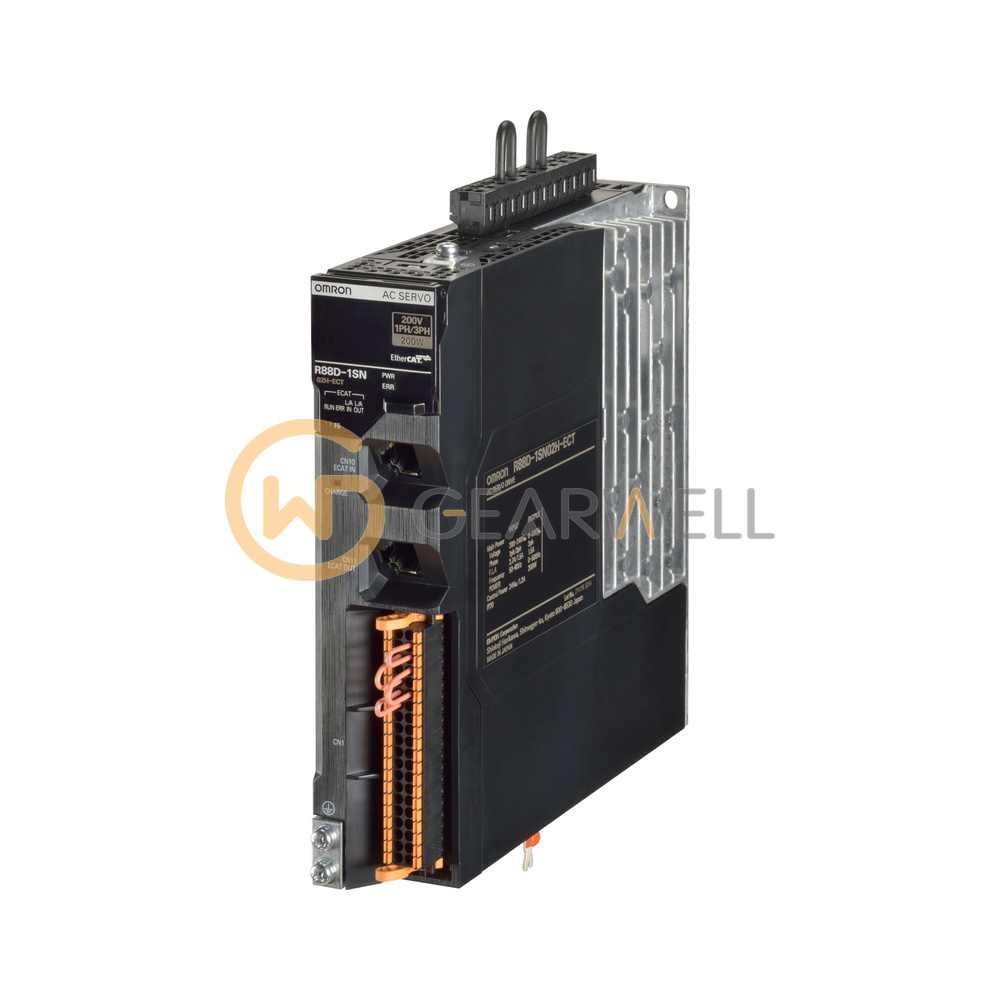

OMRON R88D-1SN02H-ECT 1S-Series EtherCAT Servo Drive
- Brand
- OMRON
- Model
- R88D-1SN02H-ECT
- GEARWELL SKU
- GWP-000006872
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON R88D-1SN02H-ECT is a 1S-series servo drive with EtherCAT communications (125 µs cycle) for 200 W motors, for example the R88M-1M20030 3000 r/min motors. The main circuit takes single-phase 200 to 240 VAC (170 to 252 V) at 50/60 Hz and the control circuit 24 VDC; rated input current is 2.7 Arms, rated output current 1.5 Arms and max. current 5.6 Arms. Safe torque off is hardwired (PLe, SIL3); this version has no SS1/SLS sub-functions over EtherCAT (that is the -51 version). It is IP20 (built into an IP54 panel), weighs 1.2 kg and works from 0 to 55°C.
Technical reference
| Product name | OMRON R88D-1SN02H-ECT 1S-Series EtherCAT Servo Drive |
|---|---|
| Brand | OMRON |
| Model | R88D-1SN02H-ECT |
| Category | Servo Systems |
