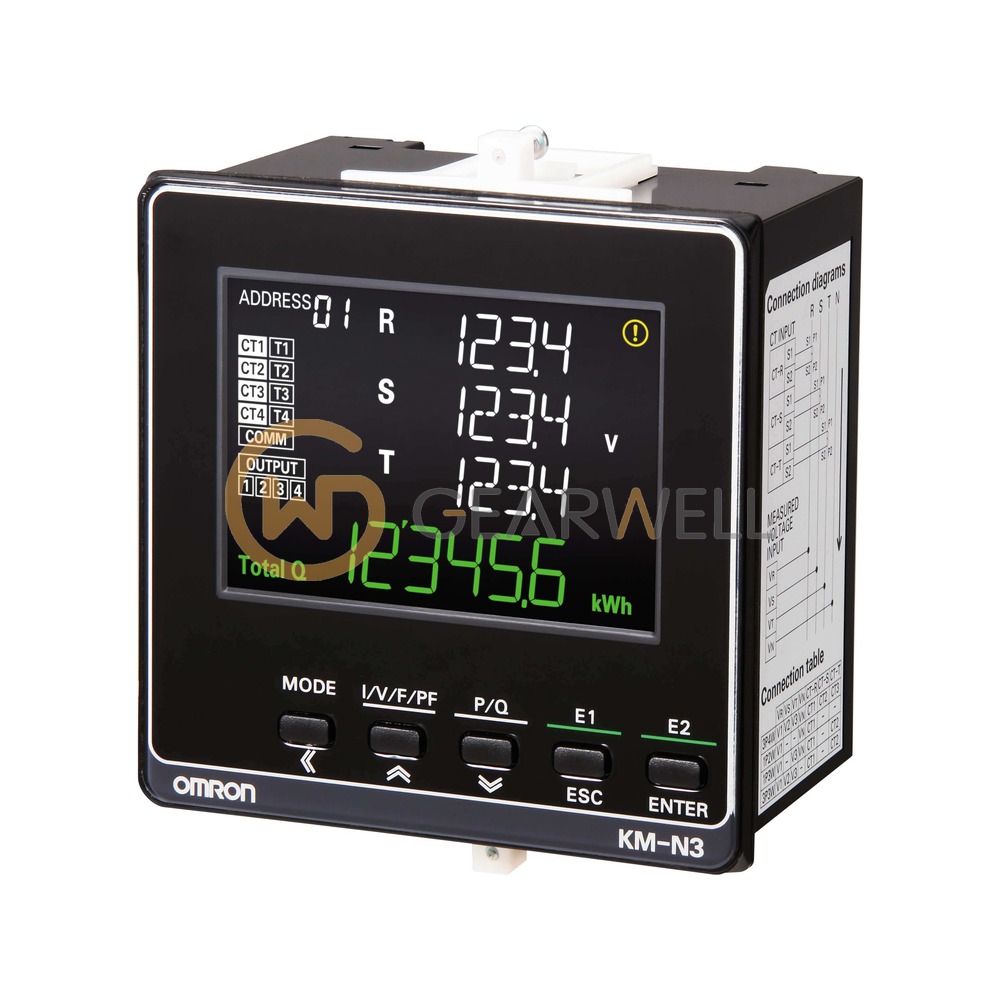

OMRON KM-N3-FLK KM-N3 Power monitor (multi-circuit, on-panel)
- Brand
- OMRON
- Model
- KM-N3-FLK
- GEARWELL SKU
- GWP-000013881
- Category
- Test & Measurement
Key specifications
- Communication
- RS-485 (Modbus RTU, CompoWay/F)
- Terminal type
- Push-in Plus, Screw
- Installation type
- On-panel
- Measured circuits
- 4 max.
- Power supply voltage
- 100-240 VAC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON KM-N3-FLK is a KM-N3 power monitor for on-panel installation that measures up to four single-phase two-wire circuits (or two single-phase three-wire or three-phase three-wire circuits, or one three-phase four-wire circuit) with general-purpose CTs of 1 A or 5 A secondary current. It measures power consumption, power, current, voltage, power factor and frequency, with active power to IEC 62053-22 class 0.5S. Its own power supply is 100 to 240 VAC (7 VA max.), separate from the measurement voltage. It has RS-485 communications (Modbus RTU or CompoWay/F) and 4 photoMOS pulse outputs, measures 96 × 96 × 64 mm, weighs approx. 350 g and its front is rated IP65.
Technical reference
| Product name | OMRON KM-N3-FLK KM-N3 Power monitor (multi-circuit, on-panel) |
|---|---|
| Brand | OMRON |
| Model | KM-N3-FLK |
| Category | Test & Measurement |
| Communication | RS-485 (Modbus RTU, CompoWay/F) |
| Terminal type | Push-in Plus, Screw |
| Installation type | On-panel |
| Measured circuits | 4 max. |
| Power supply voltage | 100-240 VAC |
| Applicable phase wiring | Single-phase 2/3-wire, Three-phase 3-wire, Three-phase 4-wire |
| Rated input voltage (three-phase 4-wire, grounded neutral) | 173-480 (L-L) VAC |
