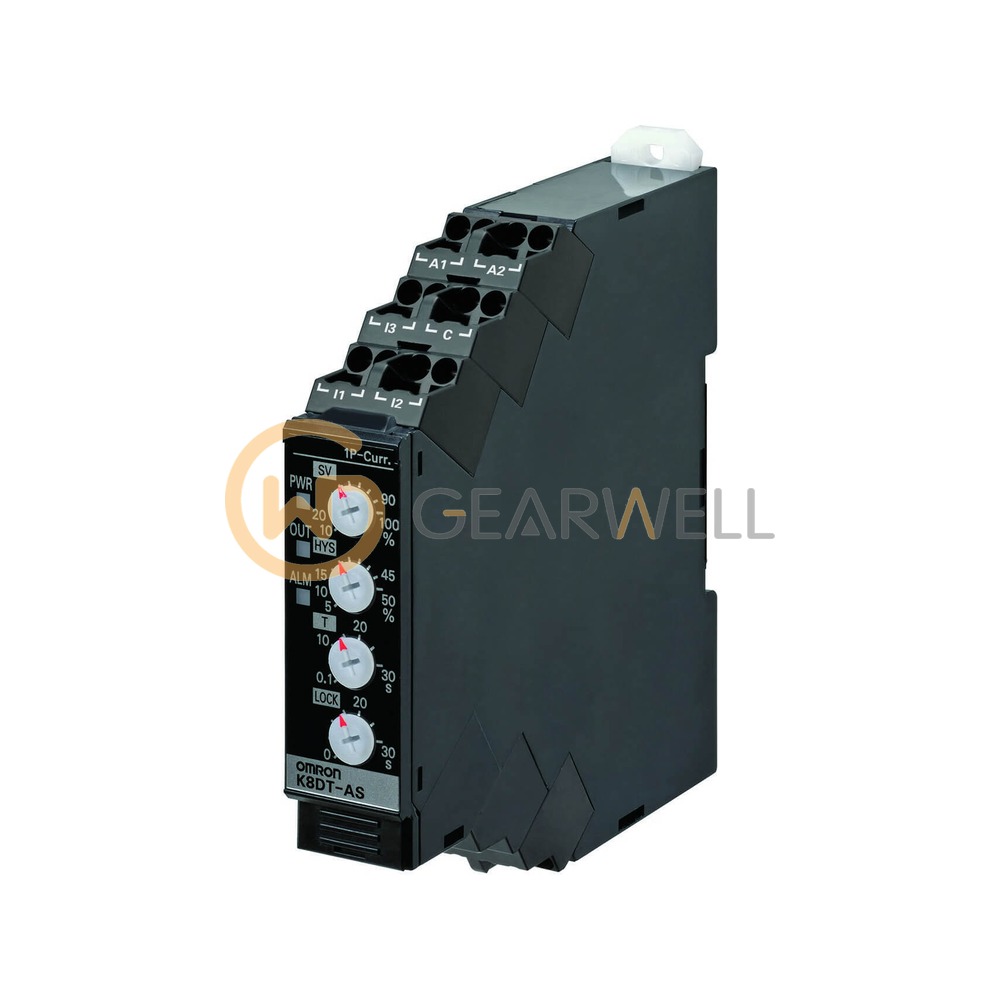

OMRON K8DT-AS3CD K8DT-AS Current Monitoring Relay
- Brand
- OMRON
- Model
- K8DT-AS3CD
- GEARWELL SKU
- GWP-000007822
- Category
- Relays & Controllers
Key specifications
- Width
- 17.5 mm
- Output
- Relay, 1 x SPDT
- Function
- Single-phase over/undercurrent
- Setting range
- 10 to 100 A AC, 20 to 200 A AC
- Terminal type
- Push-in
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON K8DT-AS3CD is a K8DT-AS single-phase current monitoring relay for overcurrent or undercurrent detection, in the version for 10 to 100 A AC and 20 to 200 A AC that must be used with the OMRON K8AC-CT200L current transformer (direct input is not possible). Its SPDT relay contact output is rated 250 VAC 5 A or 30 VDC 5 A (resistive load) and can be switched between normally open and normally closed. It runs on 24 VAC/DC (1.8 VA/1 W max.), has Push-In Plus terminals and settable operating value, hysteresis, startup lock time and operating time. It measures 17.5 × 90 × 90 mm (W×H×D), mounts on DIN track or with screws and weighs approx. 100 g.
Technical reference
| Product name | OMRON K8DT-AS3CD K8DT-AS Current Monitoring Relay |
|---|---|
| Brand | OMRON |
| Model | K8DT-AS3CD |
| Category | Relays & Controllers |
| Width | 17.5 mm |
| Output | Relay, 1 x SPDT |
| Function | Single-phase over/undercurrent |
| Setting range | 10 to 100 A AC, 20 to 200 A AC |
| Terminal type | Push-in |
| Supply voltage | 24 V AC/DC |
