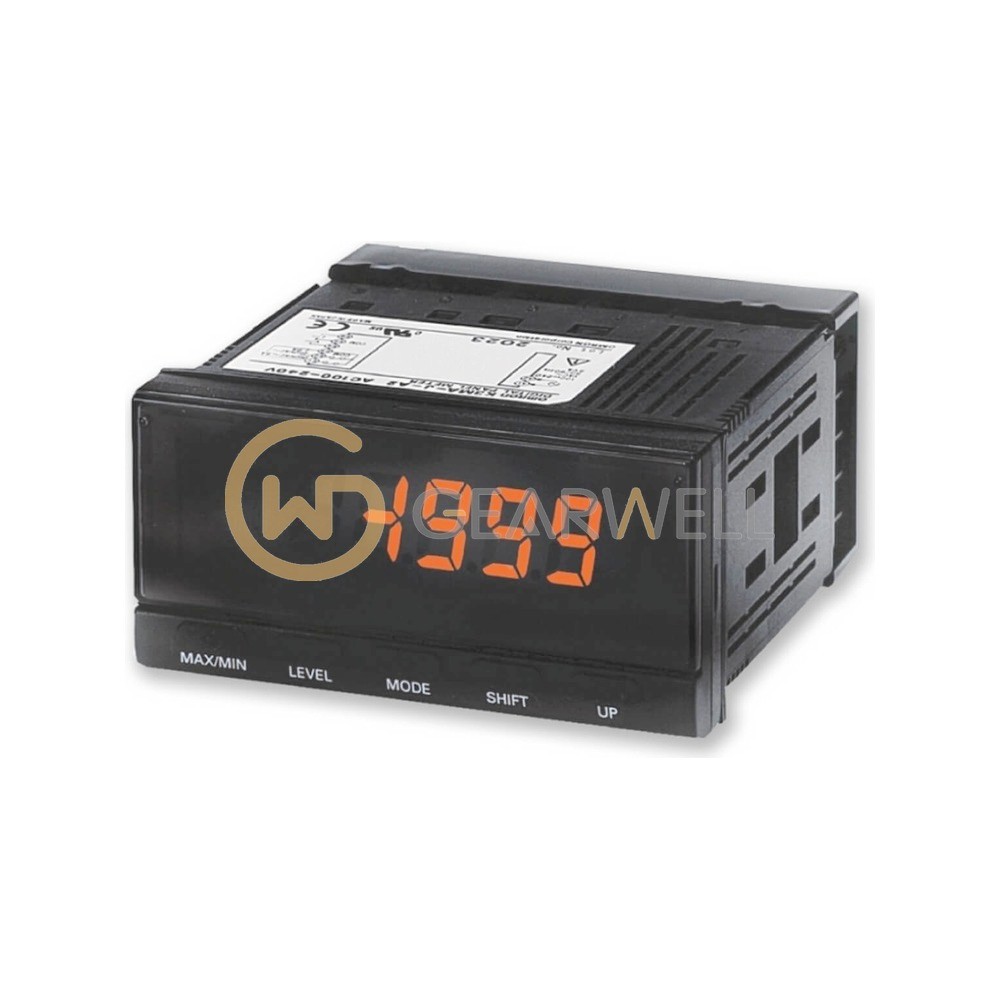

OMRON K3MA-J 100-240VAC K3MA-J Digital panel indicator (process meter)
- Brand
- OMRON
- Model
- K3MA-J 100-240VAC
- GEARWELL SKU
- GWP-000013880
- Category
- Test & Measurement
Key specifications
- Size
- 1/8 DIN (96 x 48) mm
- Accuracy
- ±0.1% full scale
- Input type
- DC current, DC voltage
- Input range
- -10 to 10 V, -5 to 5 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
- Sample rate
- 250 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON K3MA-J 100-240VAC is a K3MA-J process meter (digital panel indicator) for DC voltage and current signals, in the version without comparative outputs, so the display color cannot be switched by comparison with a reference value. It accepts 0 to 20 mA, 4 to 20 mA, 0 to 5 V, 1 to 5 V, ±5 V and ±10 V inputs, samples every 250 ms and shows 5 digits (−19999 to 99999) in 14.2 mm characters, with scaling, max/min hold and forced-zero functions. It runs on 100 to 240 VAC (6 VA max.), has a front panel rated NEMA TYPE 4X (equivalent to IP66), an 80-mm depth from the face plate and weighs approx. 200 g.
Technical reference
| Product name | OMRON K3MA-J 100-240VAC K3MA-J Digital panel indicator (process meter) |
|---|---|
| Brand | OMRON |
| Model | K3MA-J 100-240VAC |
| Category | Test & Measurement |
| Size | 1/8 DIN (96 x 48) mm |
| Accuracy | ±0.1% full scale |
| Input type | DC current, DC voltage |
| Input range | -10 to 10 V, -5 to 5 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Sample rate | 250 ms |
| Product depth | 80 mm |
| Supply voltage | 100-240 VAC |
