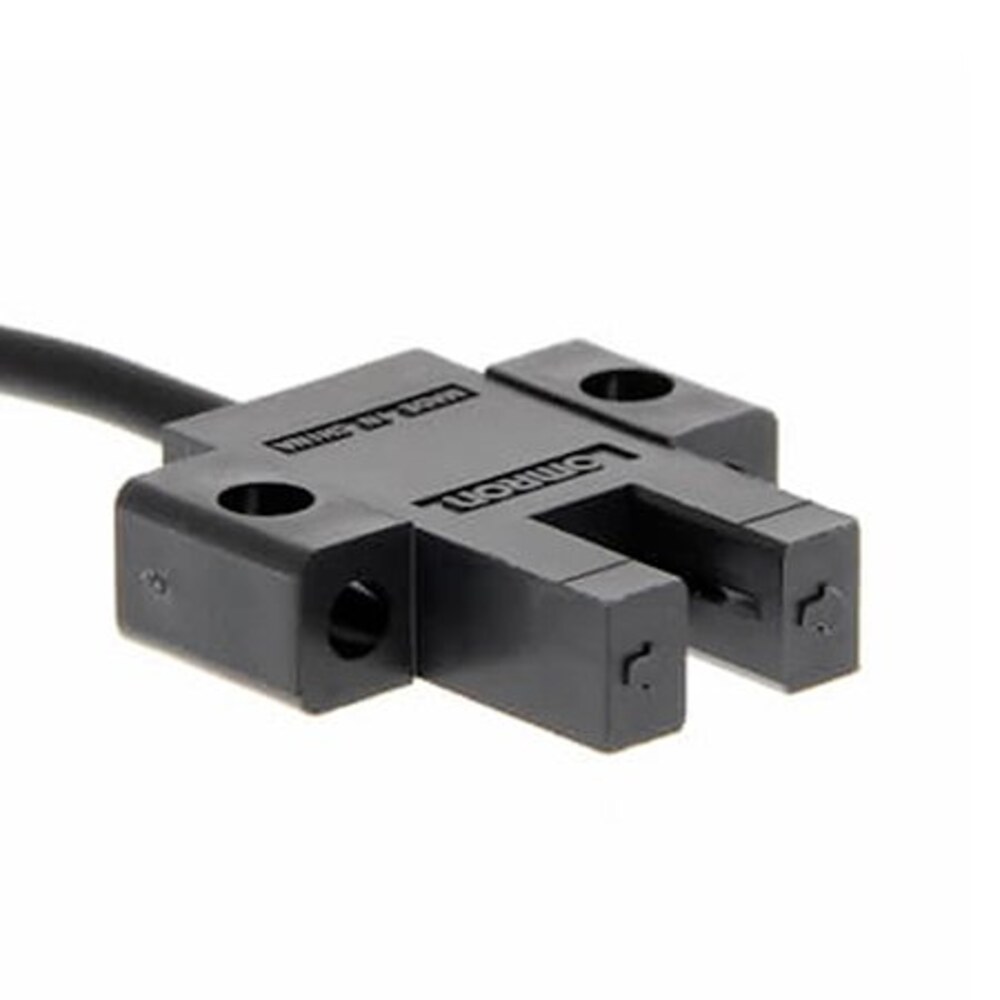

OMRON EE-SX670-WR Photomicro Sensor 1M
- Brand
- OMRON
- Model
- EE-SX670-WR
- GEARWELL SKU
- GWP-000000506
- Category
- Industrial Automation Parts
Key specifications
- Connection
- Pre-wired, 1 m robot cable
- Output type
- NPN
- Light source
- Infrared LED, peak wavelength 940 nm
- Product type
- Slot-type photomicrosensor
- Sensing method
- Through-beam, slot type
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON EE-SX670-WR 1M is a standard-shape slot-type photomicrosensor (non-modulated) from the EE-SX67 series, pre-wired with a 1 m flexible robot cable and an NPN output. The 5 mm slot detects opaque objects of 2 × 0.8 mm min. with an infrared LED (940 nm), and dark-ON or light-ON operation is chosen through the L terminal. It takes 5 to 24 VDC ±10%, draws 12 mA max. and the open collector output switches up to 100 mA, with a response frequency of 1 kHz min. It is rated IP50, works at -25 to +55°C and weighs approx. 18.9 g.
Technical reference
| Product name | OMRON EE-SX670-WR Photomicro Sensor 1M |
|---|---|
| Brand | OMRON |
| Model | EE-SX670-WR |
| Category | Industrial Automation Parts |
| Connection | Pre-wired, 1 m robot cable |
| Output type | NPN |
| Light source | Infrared LED, peak wavelength 940 nm |
| Product type | Slot-type photomicrosensor |
| Sensing method | Through-beam, slot type |
| Sensing object | Opaque object, 2 × 0.8 mm minimum |
| Sensing distance | 5 mm slot width |
| Differential distance | 0.025 mm |
