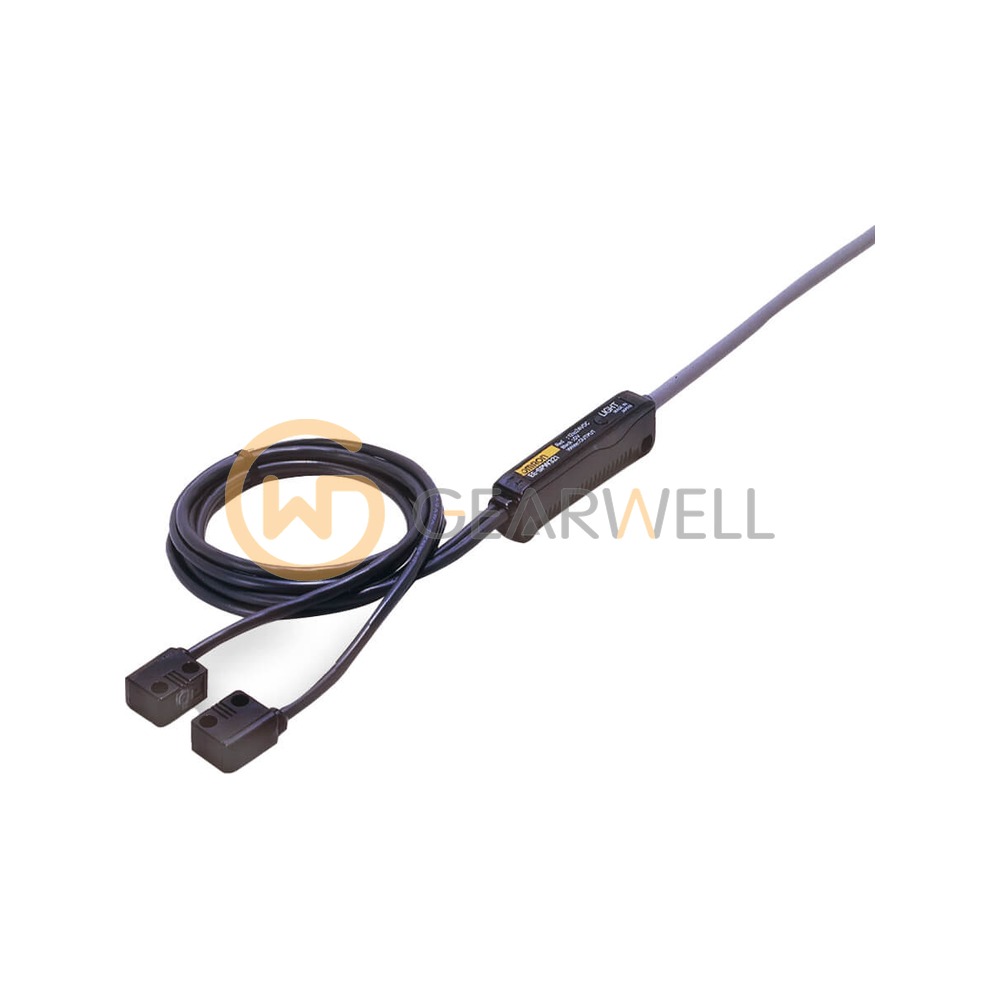

OMRON EE-SPW321 EE-SPW Photomicrosensor with Amplifier
- Brand
- OMRON
- Model
- EE-SPW321
- GEARWELL SKU
- GWP-000011573
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Cable
- 2 m (emitter to amplifier 0.5 m)
- Output
- NPN open collector, 100 mA max.
- Response time
- 1 ms
- Operation mode
- Dark-ON
- Sensing method
- Through-beam
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON EE-SPW321 is a pre-wired through-beam photomicrosensor with a slim separate amplifier, in the Dark-ON version with an NPN output. It senses opaque objects of 2 mm dia. min. at up to 300 mm with an infrared LED (940 nm), and has a 0.5 m cable from emitter and receiver to the amplifier plus a 2 m cable. It takes 12 to 24 VDC ±10%, draws 30 mA max. on average, switches up to 100 mA and responds in 1 ms max. It is rated IP64 and weighs 76 g packaged; page 1 of the datasheet notes that it was discontinued at the end of September 2025.
Technical reference
| Product name | OMRON EE-SPW321 EE-SPW Photomicrosensor with Amplifier |
|---|---|
| Brand | OMRON |
| Model | EE-SPW321 |
| Category | Proximity & Photoelectric Sensors |
| Cable | 2 m (emitter to amplifier 0.5 m) |
| Output | NPN open collector, 100 mA max. |
| Response time | 1 ms |
| Operation mode | Dark-ON |
| Sensing method | Through-beam |
| Sensing distance | 300 mm |
| Degree of protection | IP64 |
| Power supply voltage | 12 to 24 VDC |
