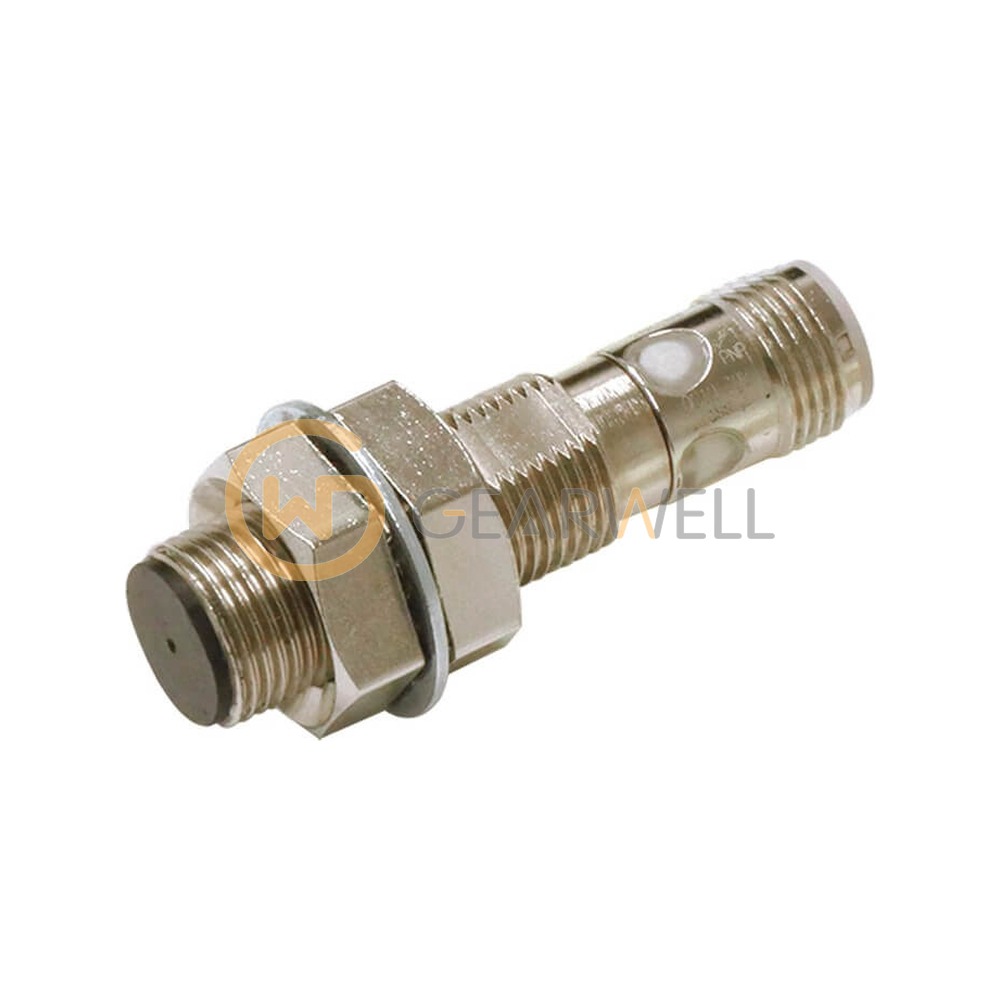

OMRON E2E-X6C212-M1 E2E NEXT Inductive Proximity Sensor
- Brand
- OMRON
- Model
- E2E-X6C212-M1
- GEARWELL SKU
- GWP-000007817
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Size
- M12
- Output
- NPN NC
- Connection
- M12 connector
- Overall length
- 48 mm
- Housing material
- Brass, nickel plated
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON E2E-X6C212-M1 is an M12 inductive proximity sensor from the E2E NEXT series (PREMIUM model, triple distance), shielded, with a DC 3-wire NPN open collector output, normally closed, and an M12 connector. It senses ferrous metal at 6 mm±10% (setting distance 0 to 4.8 mm) with a response frequency of 800 Hz and has a 48 mm body. It takes 10 to 30 VDC and draws 16 mA max. The connector version is rated IP67 and IP69K, and the case is nickel-plated brass.
Technical reference
| Product name | OMRON E2E-X6C212-M1 E2E NEXT Inductive Proximity Sensor |
|---|---|
| Brand | OMRON |
| Model | E2E-X6C212-M1 |
| Category | Proximity & Photoelectric Sensors |
| Size | M12 |
| Output | NPN NC |
| Connection | M12 connector |
| Overall length | 48 mm |
| Housing material | Brass, nickel plated |
| Sensing distance | 6 mm |
| Degree of protection | IP67/IP69K |
