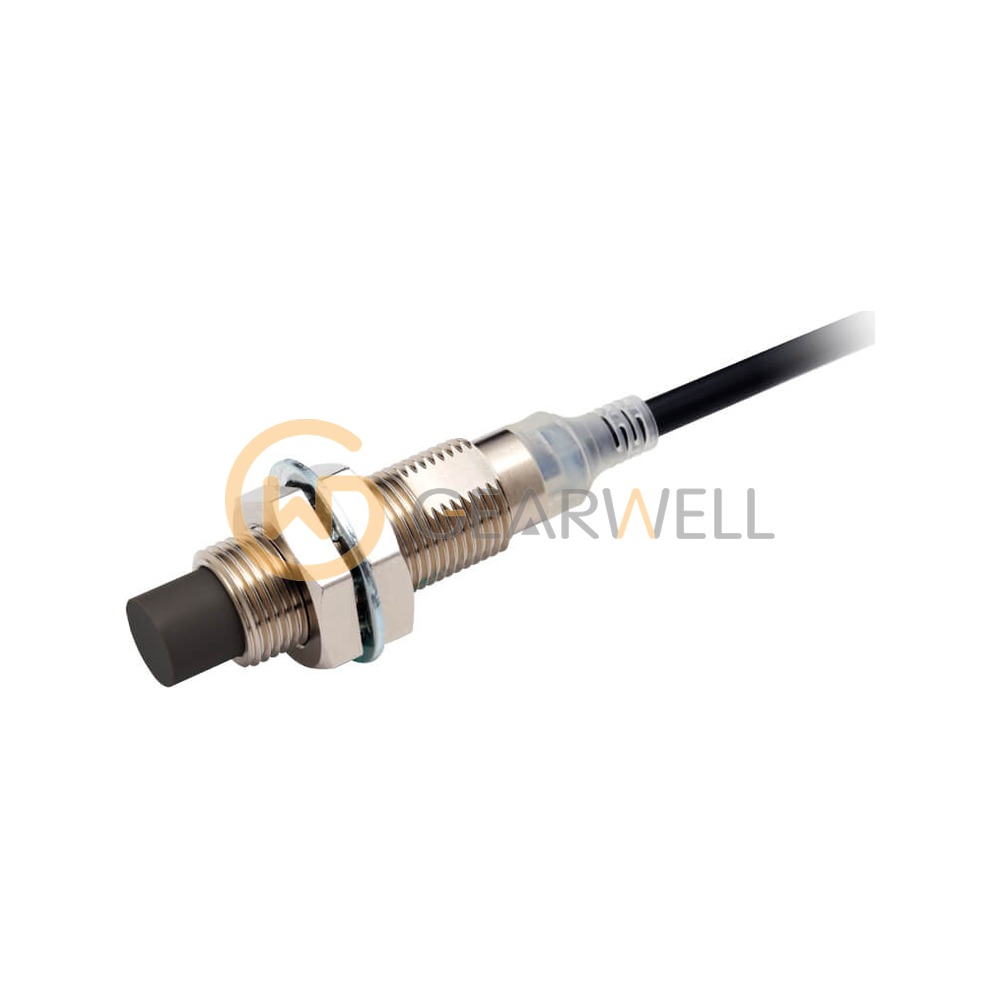

OMRON E2E-X5MC112 2M E2E NEXT Inductive Proximity Sensor
- Brand
- OMRON
- Model
- E2E-X5MC112 2M
- GEARWELL SKU
- GWP-000007816
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Size
- M12
- Cable
- PVC (oil-resistant), 2 m
- Output
- NPN NO
- Mounting type
- Non-flush (unshielded)
- Housing material
- Brass, nickel plated
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON E2E-X5MC112 2M is an M12 inductive proximity sensor from the E2E NEXT series (BASIC model, single distance), unshielded, with a DC 3-wire NPN open collector output, normally open, and a 2 m pre-wired PVC cable. It senses ferrous metal at 5 mm±10% (setting distance 0 to 4 mm) with a response frequency of 800 Hz and has a 47 mm body. It takes 10 to 30 VDC, draws 16 mA max. and switches up to 200 mA. The pre-wired version is rated IP67 and IP69K, works at -40 to 85°C and weighs approx. 95 g packed.
Technical reference
| Product name | OMRON E2E-X5MC112 2M E2E NEXT Inductive Proximity Sensor |
|---|---|
| Brand | OMRON |
| Model | E2E-X5MC112 2M |
| Category | Proximity & Photoelectric Sensors |
| Size | M12 |
| Cable | PVC (oil-resistant), 2 m |
| Output | NPN NO |
| Mounting type | Non-flush (unshielded) |
| Housing material | Brass, nickel plated |
| Sensing distance | 5 mm |
| Degree of protection | IP67/IP67G/IP69K |
