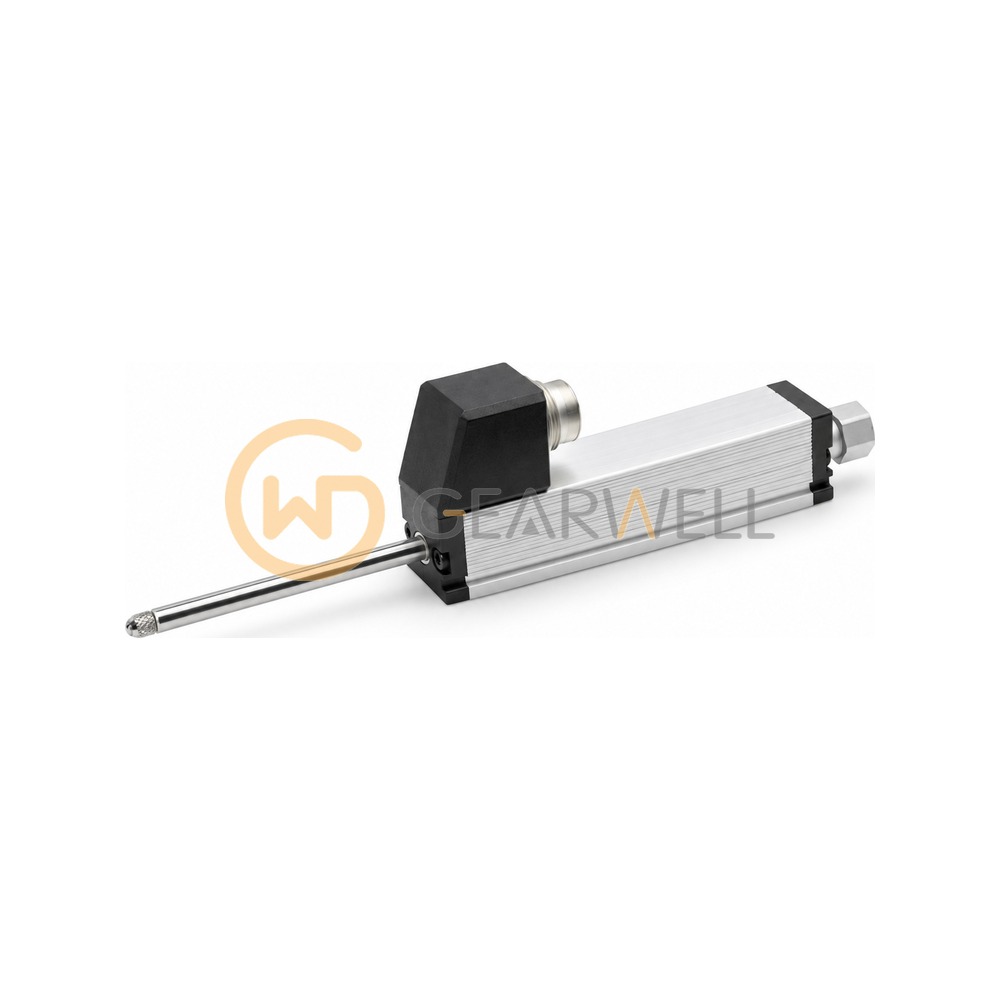

NOVOTECHNIK TRS-0050 TRS Series 50mm Spring-loaded Linear Potentiometer
- Brand
- NOVOTECHNIK
- Model
- TRS-0050
- GEARWELL SKU
- GWP-000012983
- Category
- Encoders & Position
Key specifications
- Life
- >100 x 10^6 movements
- Mounting
- Clamp mount
- Connection
- Plug (connector)
- Protection class
- IP40 (DIN EN 60529)
- Temperature range
- -30 to +100 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | NOVOTECHNIK TRS-0050 TRS Series 50mm Spring-loaded Linear Potentiometer |
|---|---|
| Brand | NOVOTECHNIK |
| Model | TRS-0050 |
| Category | Encoders & Position |
| Life | >100 x 10^6 movements |
| Mounting | Clamp mount |
| Connection | Plug (connector) |
| Protection class | IP40 (DIN EN 60529) |
| Temperature range | -30 to +100 °C |
| Nominal resistance | 5 kΩ |
| Independent linearity | ±0.15 % |
| Defined electrical range | 50 mm |
