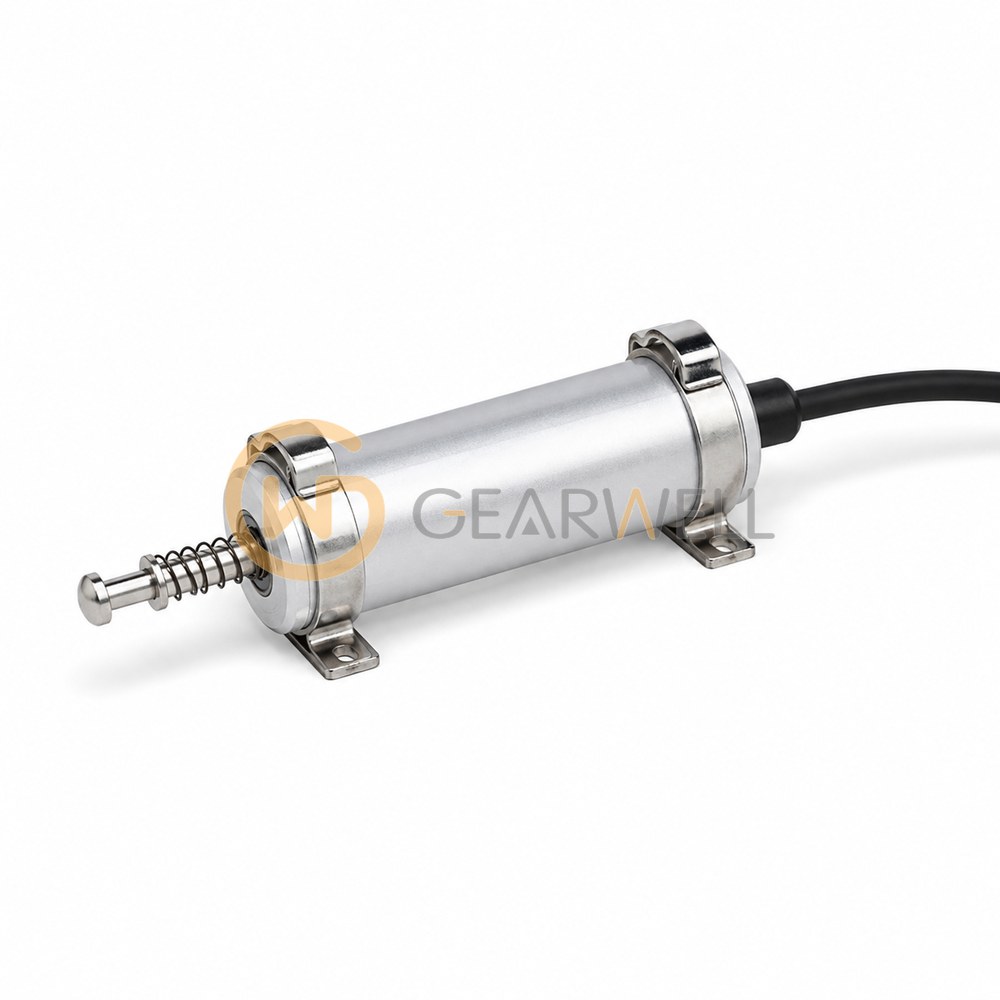

NOVOTECHNIK TR-0025 Linear Transducer
- Brand
- NOVOTECHNIK
- Model
- TR-0025
- GEARWELL SKU
- GWP-000000206
- Category
- Industrial Automation Parts
Key specifications
- Connection
- 3-core shielded PVC cable, 2 m
- Product type
- Potentiometric position transducer
- Repeatability
- 0.002 mm
- Electrical stroke
- 27 mm
- Nominal resistance
- 1 kΩ
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | NOVOTECHNIK TR-0025 Linear Transducer |
|---|---|
| Brand | NOVOTECHNIK |
| Model | TR-0025 |
| Category | Industrial Automation Parts |
| Connection | 3-core shielded PVC cable, 2 m |
| Product type | Potentiometric position transducer |
| Repeatability | 0.002 mm |
| Electrical stroke | 27 mm |
| Nominal resistance | 1 kΩ |
| Independent linearity | ±0.2% |
| Maximum permissible applied voltage | 42 V |
| Defined electrical range | 25 mm |
