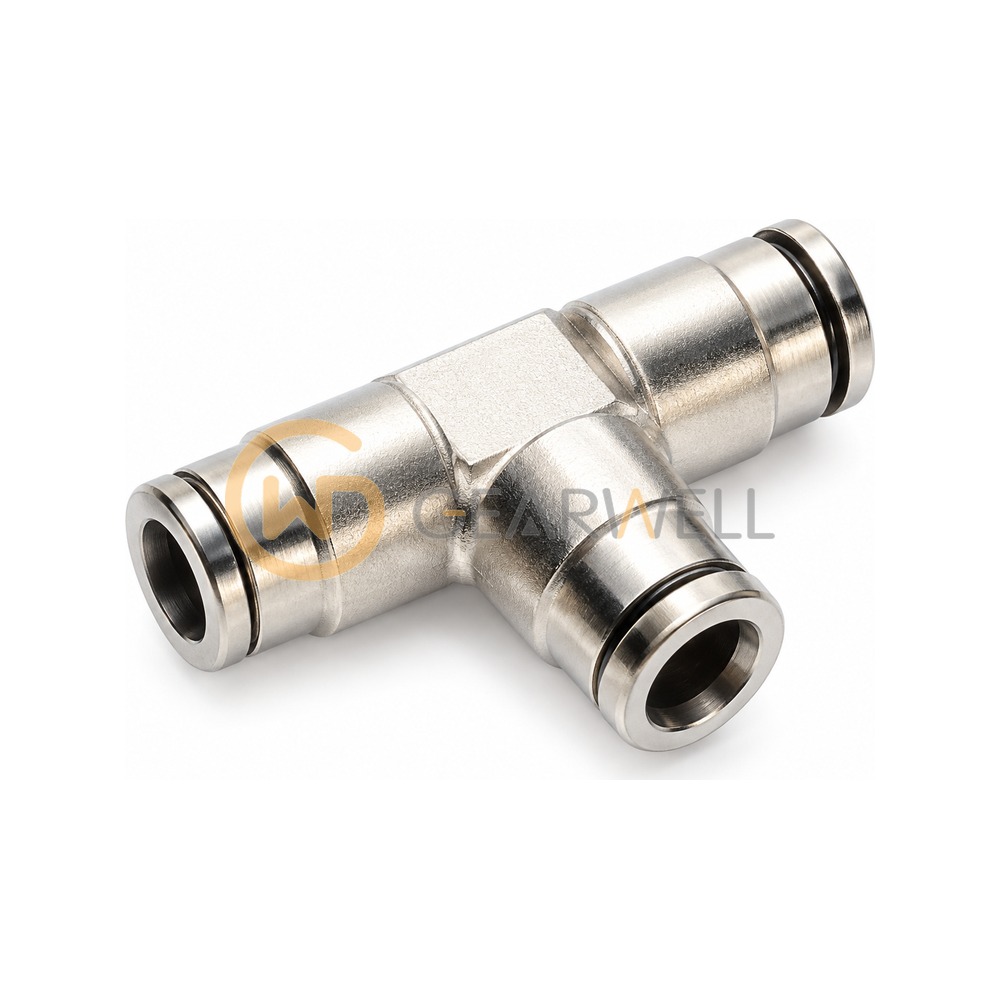

NORGREN 100600400 PNEUFIT 10 Tee Connector 4 mm
- Brand
- NORGREN
- Model
- 100600400
- GEARWELL SKU
- GWP-000016550
- Category
- Fittings, Tubing & Vacuum
Key specifications
- Medium
- Compressed air
- Tube O/D
- 4 mm
- Materials
- Nickel-plated brass body and collet, NBR O-ring
- Dimension C
- 34 mm
- Dimension E
- 17 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | NORGREN 100600400 PNEUFIT 10 Tee Connector 4 mm |
|---|---|
| Brand | NORGREN |
| Model | 100600400 |
| Category | Fittings, Tubing & Vacuum |
| Medium | Compressed air |
| Tube O/D | 4 mm |
| Materials | Nickel-plated brass body and collet, NBR O-ring |
| Dimension C | 34 mm |
| Dimension E | 17 mm |
| Type designation | 10060 tee connector, tube x 3 |
| Operating pressure | Vacuum to 18 bar |
| Ambient/media temperature | -20 to +80 °C |
