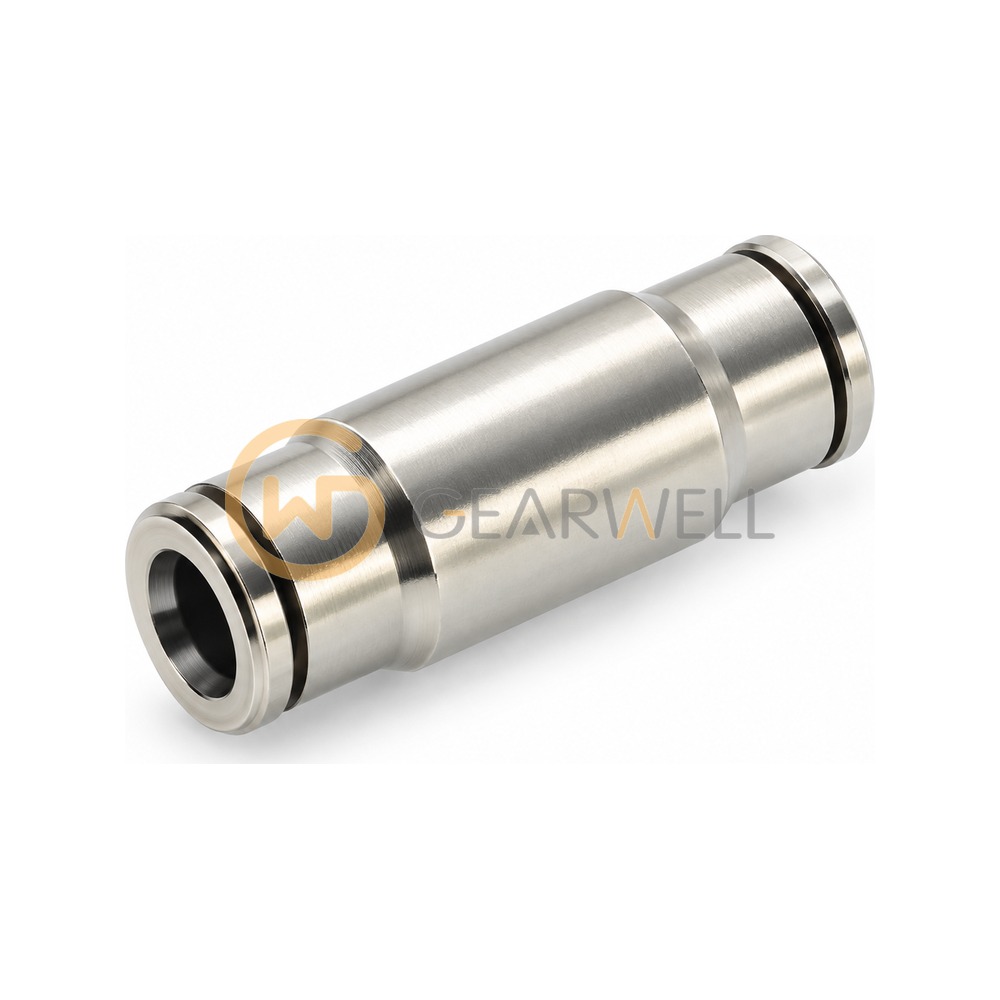

NORGREN 100201000 PNEUFIT 10 Straight Tube-to-Tube Connector 10 mm
- Brand
- NORGREN
- Model
- 100201000
- GEARWELL SKU
- GWP-000016548
- Category
- Fittings, Tubing & Vacuum
Key specifications
- Medium
- Compressed air
- Tube O/D
- 10 mm
- Materials
- Nickel-plated brass body and collet, NBR O-ring
- Body diameter K
- 17 mm
- Overall length C
- 44.5 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | NORGREN 100201000 PNEUFIT 10 Straight Tube-to-Tube Connector 10 mm |
|---|---|
| Brand | NORGREN |
| Model | 100201000 |
| Category | Fittings, Tubing & Vacuum |
| Medium | Compressed air |
| Tube O/D | 10 mm |
| Materials | Nickel-plated brass body and collet, NBR O-ring |
| Body diameter K | 17 mm |
| Overall length C | 44.5 mm |
| Type designation | 10020 straight connector, tube to tube |
| Operating pressure | Vacuum to 18 bar |
| Ambient/media temperature | -20 to +80 °C |
