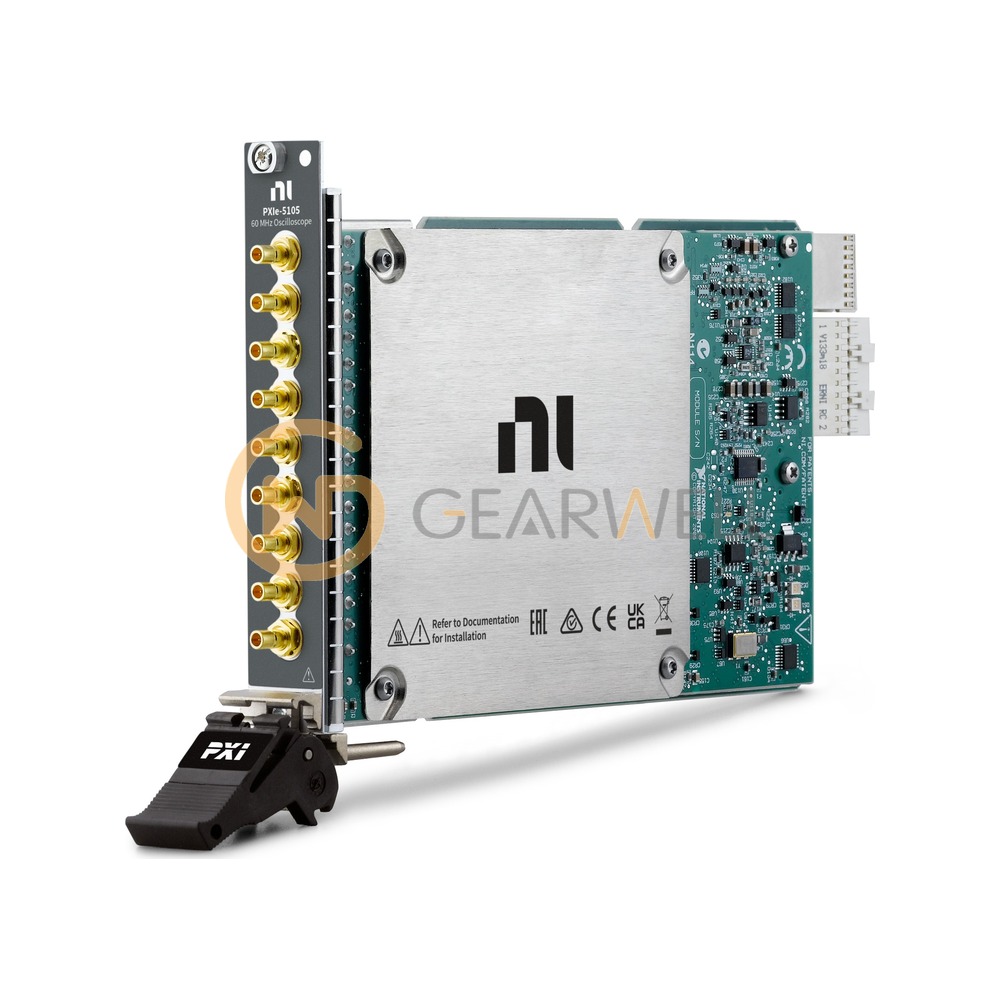

National Instruments PXIe-5105 8-Channel 60 MHz PXI Oscilloscope
- Brand
- National Instruments
- Model
- PXIe-5105
- GEARWELL SKU
- GWP-000014851
- Category
- Test & Measurement
Key specifications
- Bus
- PXI Express
- Channels
- 8
- Bandwidth
- 60 MHz
- Resolution
- 12 bit
- Input range
- -15 to 15 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | National Instruments PXIe-5105 8-Channel 60 MHz PXI Oscilloscope |
|---|---|
| Brand | National Instruments |
| Model | PXIe-5105 |
| Category | Test & Measurement |
| Bus | PXI Express |
| Channels | 8 |
| Bandwidth | 60 MHz |
| Resolution | 12 bit |
| Input range | -15 to 15 V |
| Onboard memory | 16 MB (783590-01), 128 MB (783590-02), 512 MB (783590-03) |
| Input impedance | 50 Ω / 1 MΩ |
| Max sample rate | 60 MS/s |
