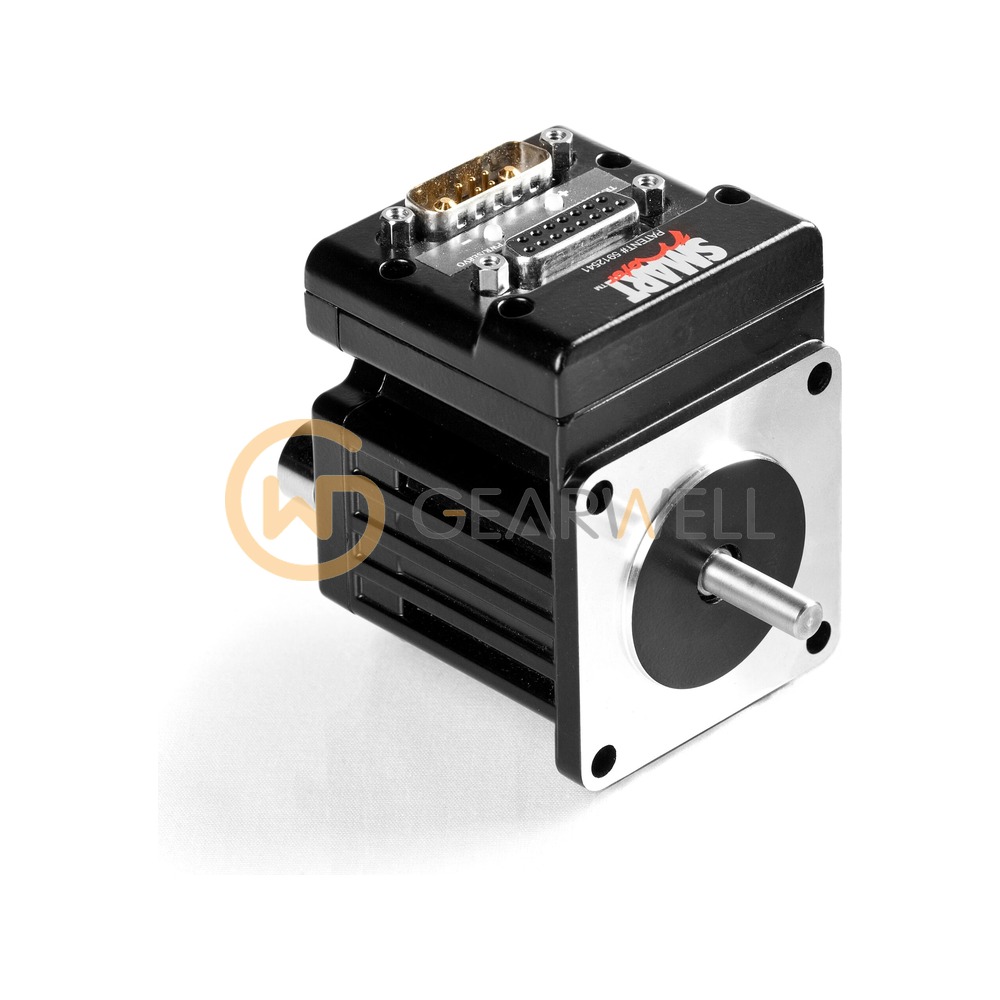

MOOG SM23165D Class 5 D-Style SmartMotor Integrated Servo Motor
- Brand
- Moog
- Model
- SM23165D
- GEARWELL SKU
- GWP-000010448
- Category
- Servo Systems
Key specifications
- Weight
- 0.45 kg
- Peak torque
- 0.45 N-m
- No load speed
- 10400 RPM
- Shaft diameter
- 6.35 mm
- Voltage constant
- 4.45 V/kRPM
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | MOOG SM23165D Class 5 D-Style SmartMotor Integrated Servo Motor |
|---|---|
| Brand | Moog |
| Model | SM23165D |
| Category | Servo Systems |
| Weight | 0.45 kg |
| Peak torque | 0.45 N-m |
| No load speed | 10400 RPM |
| Shaft diameter | 6.35 mm |
| Voltage constant | 4.45 V/kRPM |
| Continuous torque | 0.28 N-m |
| Encoder resolution | 4000 counts/rev |
| Nominal continuous power | 181 W |
