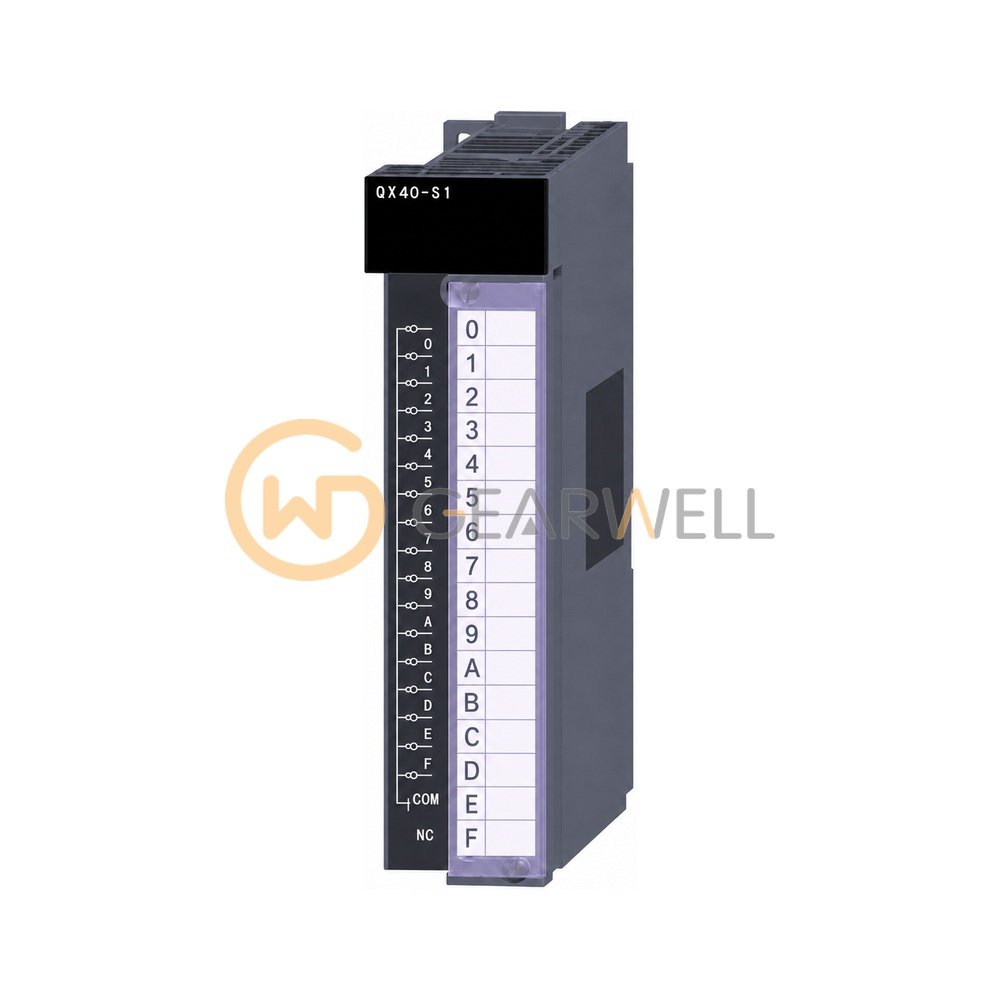

Mitsubishi Electric QX40-S1 Digital Input Module
- Brand
- Mitsubishi Electric
- Model
- QX40-S1
- GEARWELL SKU
- GWP-000006836
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric QX40-S1 is a MELSEC-Q high-speed DC input module with 16 positive common inputs on one common. Inputs are rated 24VDC at approximately 6mA, turning on at 19V or higher. The response time can be set in parameters to 0.1, 0.2, 0.4, 0.6 or 1ms, giving typical OFF to ON times from 0.05ms. Inputs are photocoupler isolated and connect through an 18-point terminal block. Internal current consumption is 60mA at 5VDC and weight is 0.20kg.
Technical reference
| Product name | Mitsubishi Electric QX40-S1 Digital Input Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | QX40-S1 |
| Category | PLCs & I/O |
