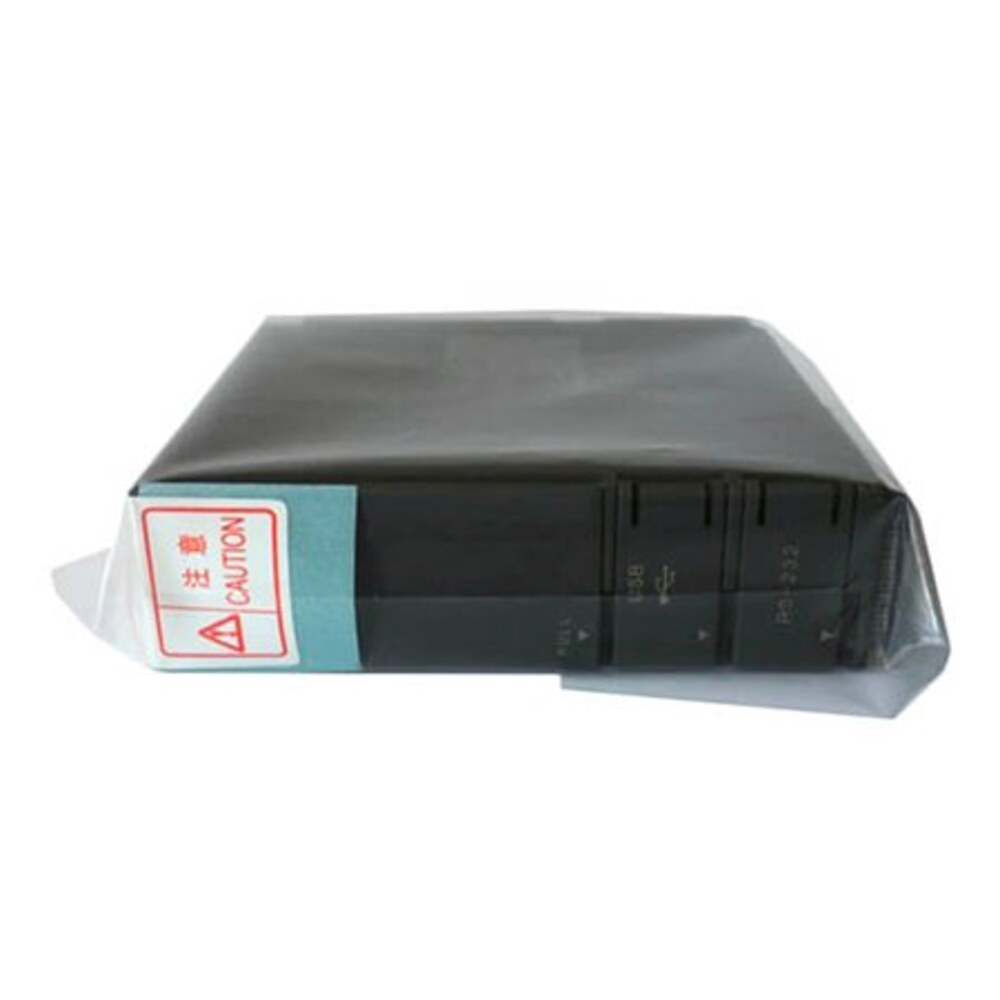

Mitsubishi Electric Q06PHCPU CPU MELSEC-Q Process CPU Module
- Brand
- Mitsubishi Electric
- Model
- Q06PHCPU
- GEARWELL SKU
- GWP-000000665
- Category
- Industrial Automation Parts
Key specifications
- Number of I/O points
- 4096
- External interfaces
- USB and RS-232
- Product type
- MELSEC-Q process CPU module
- Program memory
- 240 KB
- I/O device points
- 8192
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric Q06PHCPU is a MELSEC-Q Process CPU module for process control applications, programmable in sequence languages and in FBD for process control through PX Developer. Program size is 60K steps with 240K bytes of program memory, and a basic LD instruction executes in 34ns. It handles 4096 actual I/O points and 8192 I/O device points. Internal current consumption is 0.64A at 5VDC, and the module measures 98mm high, 27.4mm wide and 89.3mm deep with a weight of 0.20kg.
Technical reference
| Product name | Mitsubishi Electric Q06PHCPU CPU MELSEC-Q Process CPU Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | Q06PHCPU |
| Category | Industrial Automation Parts |
| Number of I/O points | 4096 |
| External interfaces | USB and RS-232 |
| Product type | MELSEC-Q process CPU module |
| Program memory | 240 KB |
| I/O device points | 8192 |
| LD instruction speed | 34 ns |
| Program capacity | 60K steps |
| Operating temperature | 0 to 55 deg C |
