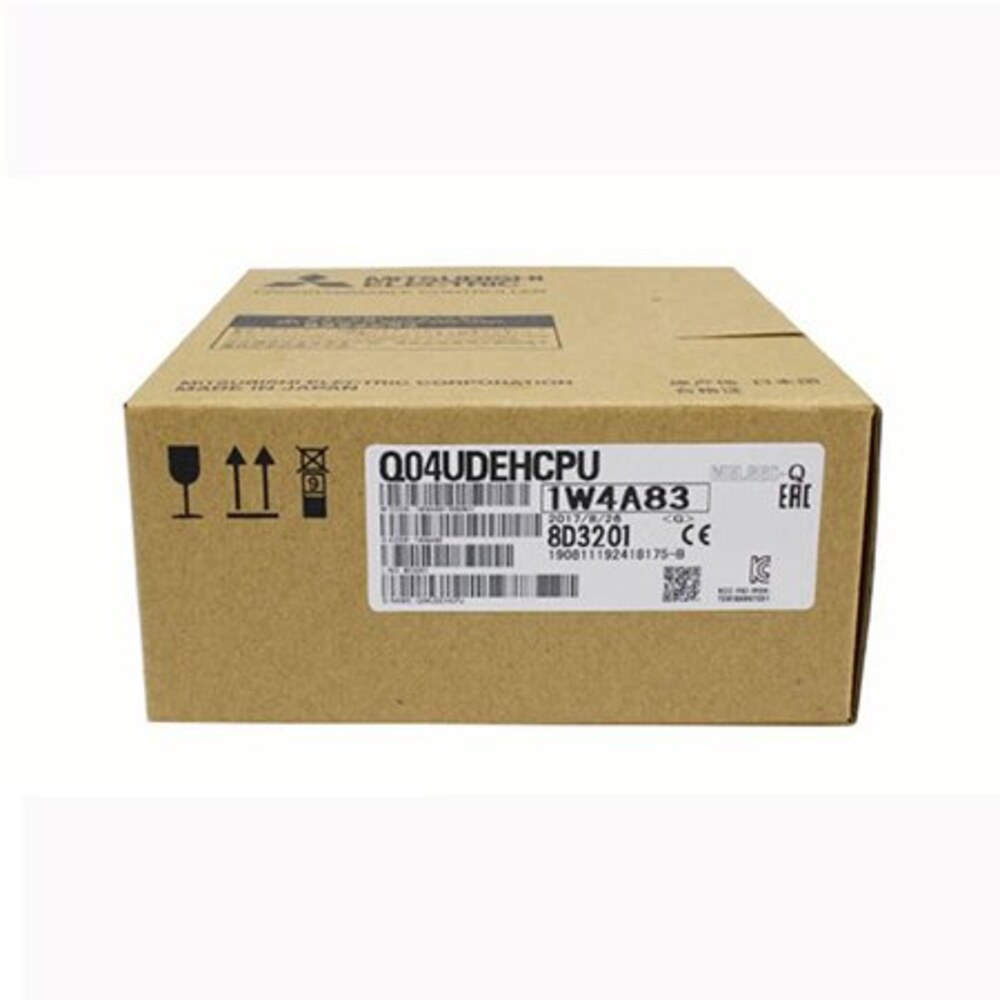

Mitsubishi Electric Q04UDEHCPU PLC CPU Module
- Brand
- Mitsubishi Electric
- Model
- Q04UDEHCPU
- GEARWELL SKU
- GWP-000001455
- Category
- Industrial Automation Parts
Key specifications
- Number of I/O points
- 4096
- Product type
- MELSEC-Q universal CPU module
- Program memory
- 160 KB
- I/O device points
- 8192
- Program capacity
- 40K steps
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric Q04UDEHCPU is a MELSEC-Q Universal model CPU module with a built-in Ethernet port. Program size is 40K steps (160K bytes of program memory) and a basic LD instruction executes in 9.5ns, with MOV in 19ns. It handles 4096 actual I/O points and 8192 I/O device points, and has 256K bytes of standard RAM. The Ethernet port runs at 100/10Mbps. It draws 0.49A at 5VDC, measures 98mm high, 27.4mm wide and 115mm deep, and weighs 0.22kg.
Technical reference
| Product name | Mitsubishi Electric Q04UDEHCPU PLC CPU Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | Q04UDEHCPU |
| Category | Industrial Automation Parts |
| Number of I/O points | 4096 |
| Product type | MELSEC-Q universal CPU module |
| Program memory | 160 KB |
| I/O device points | 8192 |
| Program capacity | 40K steps |
| Built-in network interface | Ethernet |
| Operating temperature | 0 to 55 deg C |
