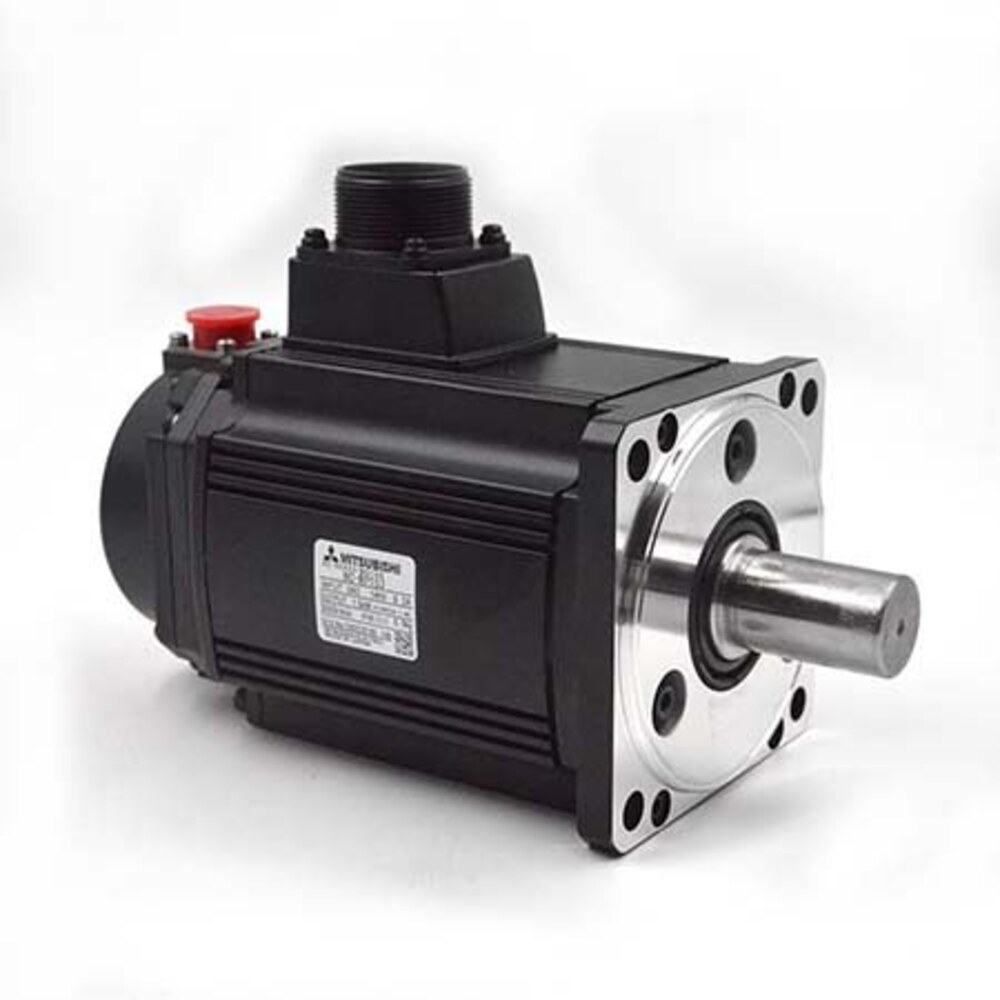

Mitsubishi Electric HC-RP153 Servo Motor
- Brand
- Mitsubishi Electric
- Model
- HC-RP153
- GEARWELL SKU
- GWP-000001384
- Category
- Automation & Control
Key specifications
- Encoder
- 18-bit, 262144 pulses/revolution
- Protection rating
- IP65, totally enclosed non-ventilated
- Rated speed
- 3000 r/min
- Product type
- Ultra-low-inertia medium-capacity servo motor
- Rated output
- 1.5 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric HC-RP153 is a low-inertia, middle-capacity AC servo motor of the HC-RP series, used with MR-J3 servo amplifiers of the 200 size. It provides 1.5 kW rated output with 4.78 N·m rated torque and 11.9 N·m maximum torque, at a rated speed of 3000 r/min and a maximum speed of 4500 r/min. Rated current is 8.8 A and maximum current is 23 A, and the rotor moment of inertia is 1.9 x 10-4 kg·m2. Position feedback comes from an absolute/incremental encoder with 262144 pulse/rev, the totally-enclosed, natural-cooling frame is rated IP65 with insulation class 155(F) and an oil seal, and the motor weighs 5.0 kg.
Technical reference
| Product name | Mitsubishi Electric HC-RP153 Servo Motor |
|---|---|
| Brand | Mitsubishi Electric |
| Model | HC-RP153 |
| Category | Automation & Control |
| Encoder | 18-bit, 262144 pulses/revolution |
| Protection rating | IP65, totally enclosed non-ventilated |
| Rated speed | 3000 r/min |
| Product type | Ultra-low-inertia medium-capacity servo motor |
| Rated output | 1.5 kW |
| Rated torque | 4.78 N m |
| Maximum speed | 4500 r/min |
| Maximum torque | 11.9 N m |
