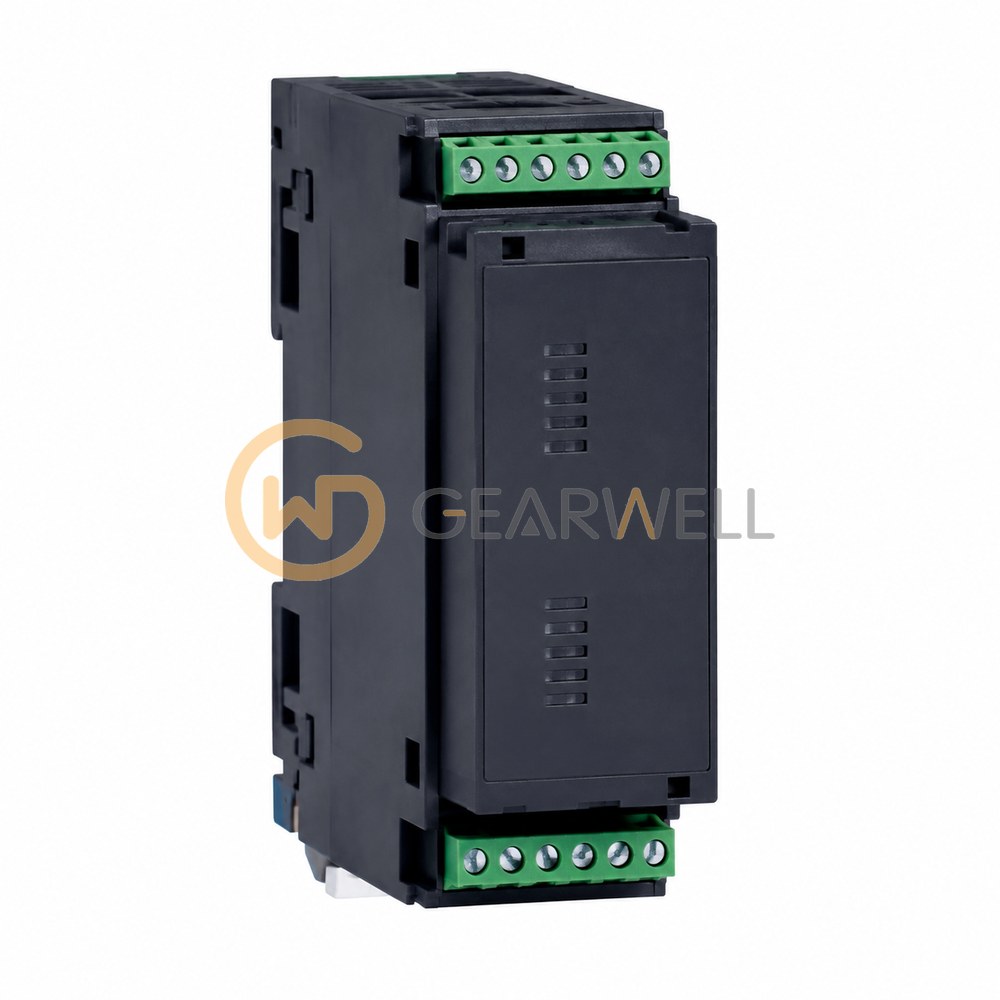

Mitsubishi Electric FX5-16EYT/ES PLC
- Brand
- Mitsubishi Electric
- Model
- FX5-16EYT/ES
- GEARWELL SKU
- GWP-000003426
- Category
- Automation & Control
Key specifications
- Mass
- Approx. 0.25 kg
- Output connection
- Screw terminal block, M3 screws
- Output type
- Transistor, sink output
- Maximum load
- 0.5 A per point; 1.6 A per 8-point common
- Output points
- 16
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX5-16EYT/ES is a MELSEC iQ-F output module with 16 transistor (sink) outputs, connected by extension cable to an FX5 CPU module. It adds 16 I/O points to the system. Confirm the FX5 CPU model it will be used with when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX5-16EYT/ES PLC |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX5-16EYT/ES |
| Category | Automation & Control |
| Mass | Approx. 0.25 kg |
| Output connection | Screw terminal block, M3 screws |
| Output type | Transistor, sink output |
| Maximum load | 0.5 A per point; 1.6 A per 8-point common |
| Output points | 16 |
| Product type | Transistor output module |
| Response time | 0.2 ms or less at 200 mA, 24 V DC |
| External power supply | 5 to 30 V DC |
