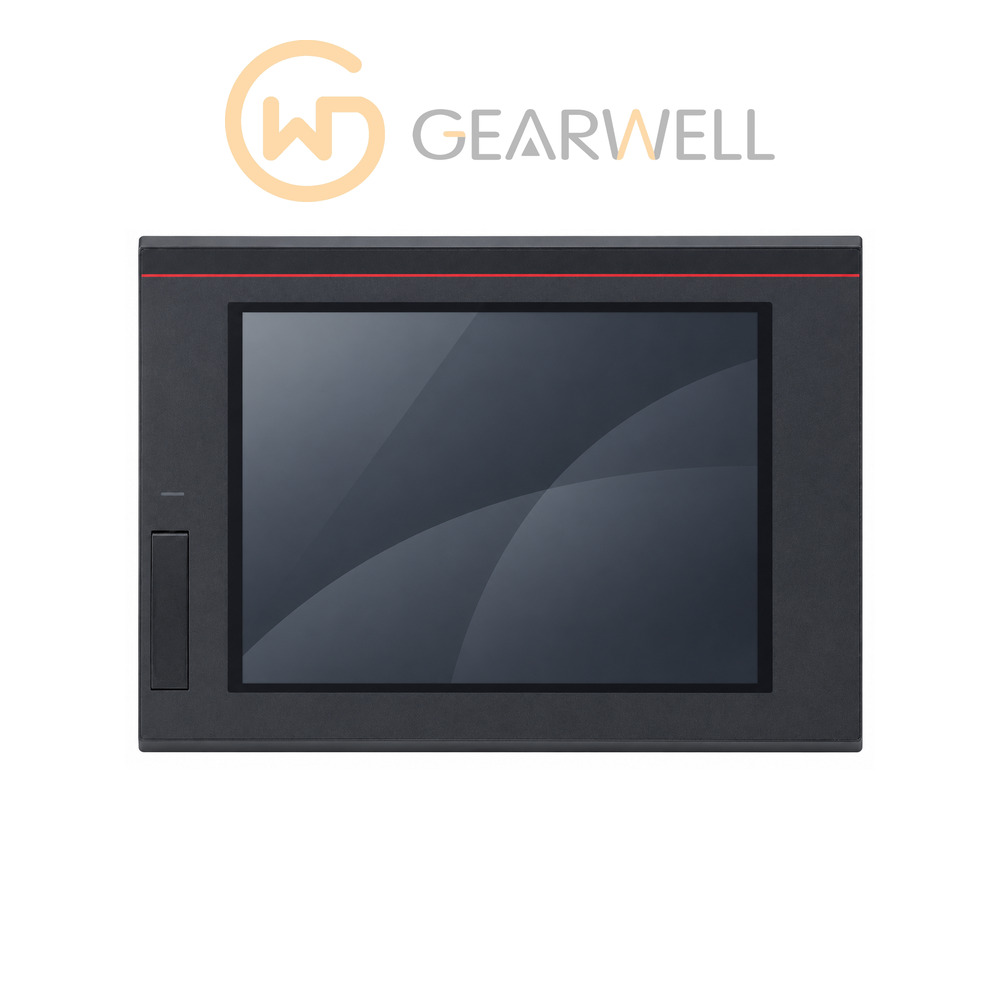

Mitsubishi Electric GT2710-VTBA GOT2000 Operator Terminal

Product overview

The Mitsubishi Electric GT2710-VTBA is a GOT2000 GT27 graphic operation terminal with a 10.4" TFT color LCD at VGA 640 x 480 dots, 65536 colors and an LED backlight. Its analog resistive film touch panel accepts up to two points pressed at once and is rated for 1 million touches or more. User memory is 57 MB storage ROM and 256 MB operation RAM; built-in interfaces are RS-232, RS-422/485, Ethernet 100BASE-TX/10BASE-T, USB 2.0 host ports on the front and rear, a USB device port and an SDHC card slot up to 32 GB, plus extension and side interfaces for communication and option units. The front is rated IP67F, the unit measures 303 x 218 x 52 mm (W x H x D) for a 289 x 200 mm panel cutout, and it weighs 2.1 kg. It runs on 100 V AC to 240 V AC at 50/60 Hz and consumes 41 W or less under maximum load.
