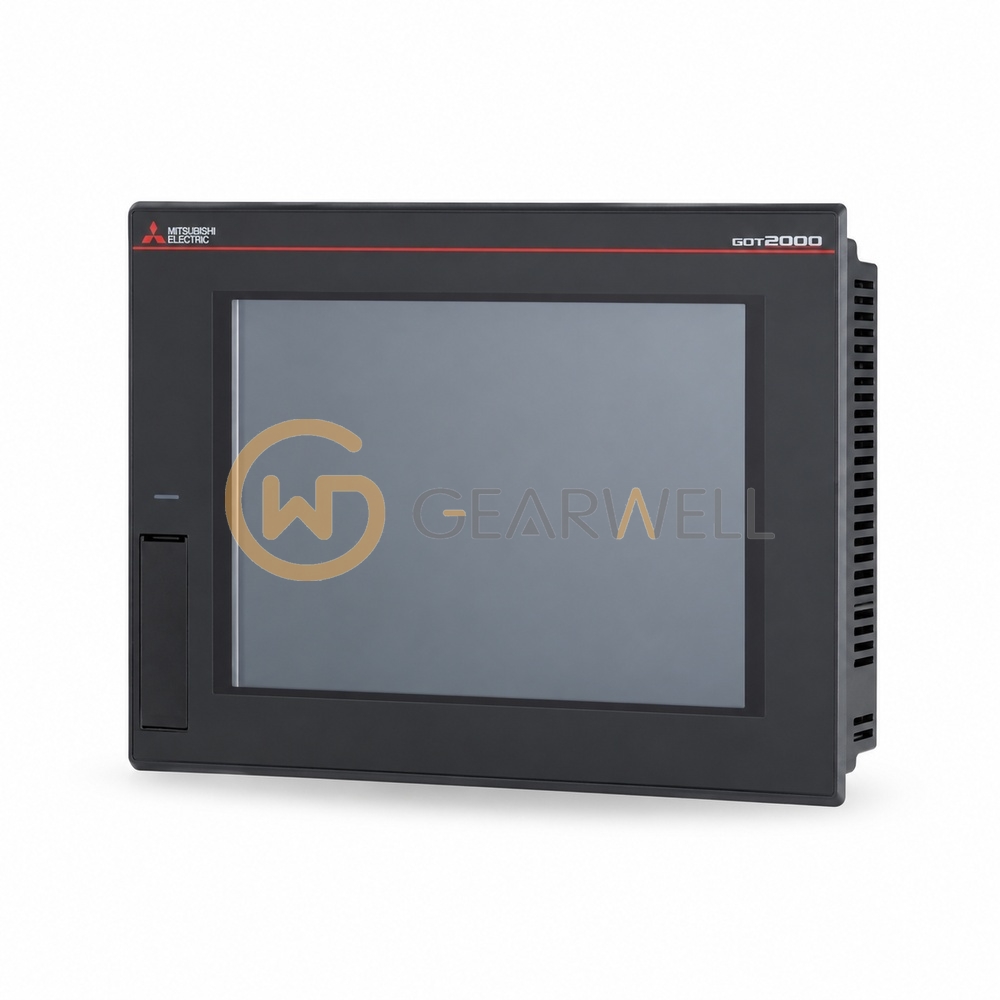

Mitsubishi Electric GT2708-VTBD GOT2000 HMI Touch Panel

Product overview

The Mitsubishi Electric GT2708-VTBD is a GOT2000 GT27 graphic operation terminal with an 8.4" TFT color LCD at VGA 640 x 480 dots, 65536 colors and an LED backlight. Its analog resistive film touch panel accepts up to two points pressed at once and is rated for 1 million touches or more. User memory is 57 MB storage ROM and 256 MB operation RAM; built-in interfaces are RS-232, RS-422/485, Ethernet 100BASE-TX/10BASE-T, two USB 2.0 host ports (front and rear), a USB device port and an SDHC card slot up to 32 GB, plus extension and side interfaces for communication and option units. The front is rated IP67F, the unit measures 241 x 194 x 52 mm (W x H x D) for a 227 x 176 mm panel cutout, and it weighs 1.5 kg. It is powered from 24 V DC and draws 39 W or less under maximum load.
