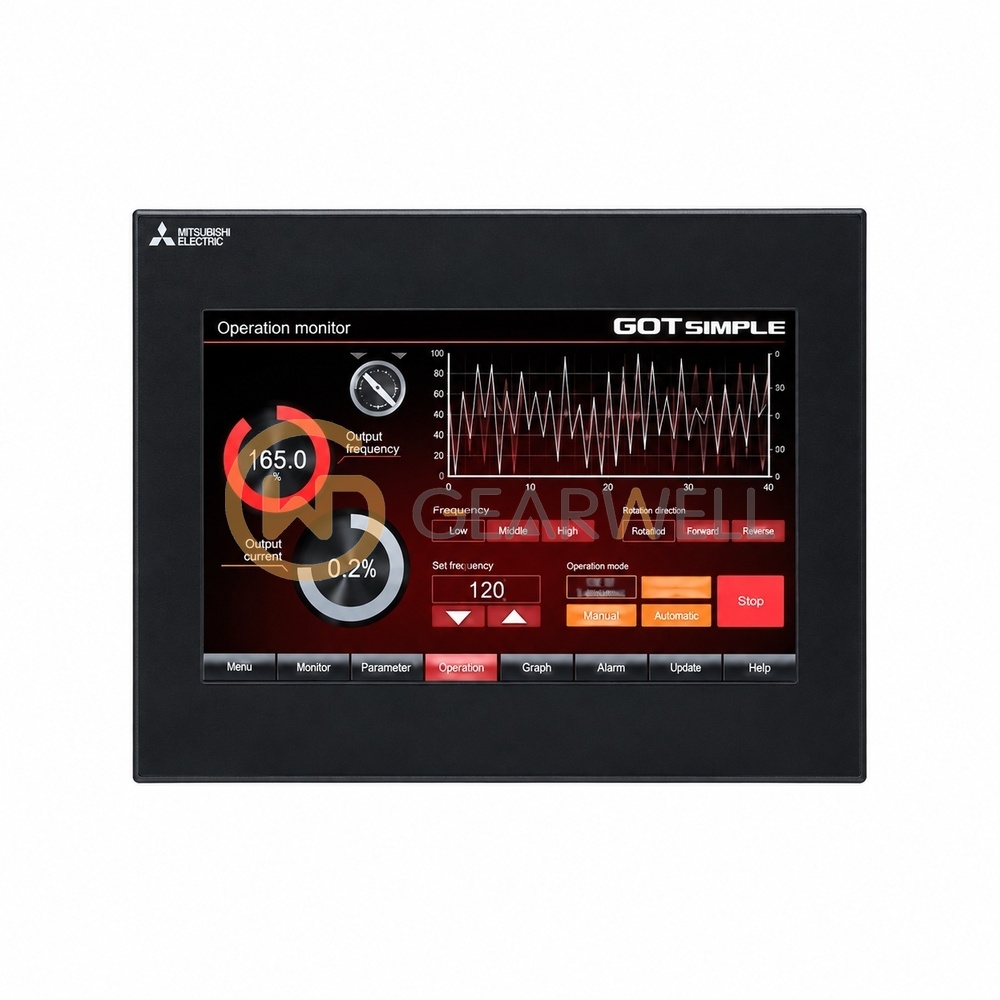

Mitsubishi Electric GS2110-WTBD-N GOT Simple HMI Operator Panel

Product overview

The Mitsubishi Electric GS2110-WTBD-N is a GOT SIMPLE GS21 operator terminal with a 10" TFT color LCD at WVGA 800 x 480 dots, 65536 colors and an LED backlight. The analog resistive film touch panel takes one touch point at a time, and memory is 15 MB storage ROM for project data and OS plus 64 MB operation RAM. Built-in interfaces are RS-232, RS-422/485 with a 330, 110 or open terminating resistor setting, Ethernet 100BASE-TX/10BASE-T, a USB device port (Mini-B) and an SD/SDHC card slot. The front is rated IP65F, the unit measures 272 x 214 x 56 mm (W x H x D) for a 258 x 200 mm panel cutout and weighs approx. 1.3 kg. It is powered from 24 V DC and consumes 7.6 W (317 mA) or less; screens are designed with GT Designer3 Version 1.250L or later.
