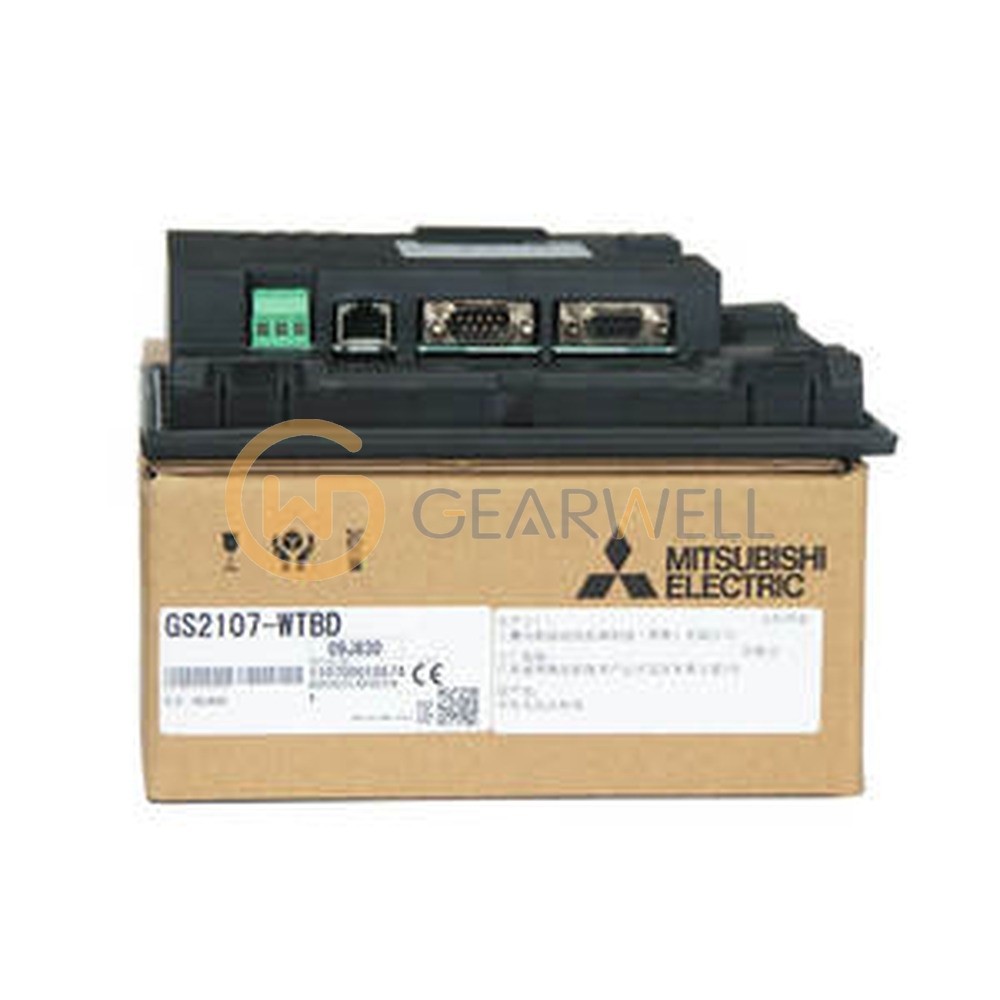

Mitsubishi Electric GS2107-WTBD HMI Operator Panel

Product overview

The Mitsubishi Electric GS2107-WTBD is a GOT SIMPLE GS21 operator terminal with a 7" TFT color LCD at WVGA 800 x 480 dots, 65536 colors and an LED backlight. The analog resistive film touch panel takes one touch point at a time, and memory is 9 MB storage ROM for project data and OS plus 9 MB operation RAM. Built-in interfaces are RS-232, RS-422 with a fixed 330 ohm terminating resistor, Ethernet 100BASE-TX/10BASE-T, a USB device port (Mini-B) and an SD/SDHC card slot. The front is rated IP65F, the unit measures 206 x 155 x 50 mm (W x H x D) for a 191 x 137 mm panel cutout and weighs approx. 0.9 kg. It is powered from 24 V DC and consumes 6.5 W (271 mA) or less; it is the earlier version of the GS2107-WTBD-N model.
