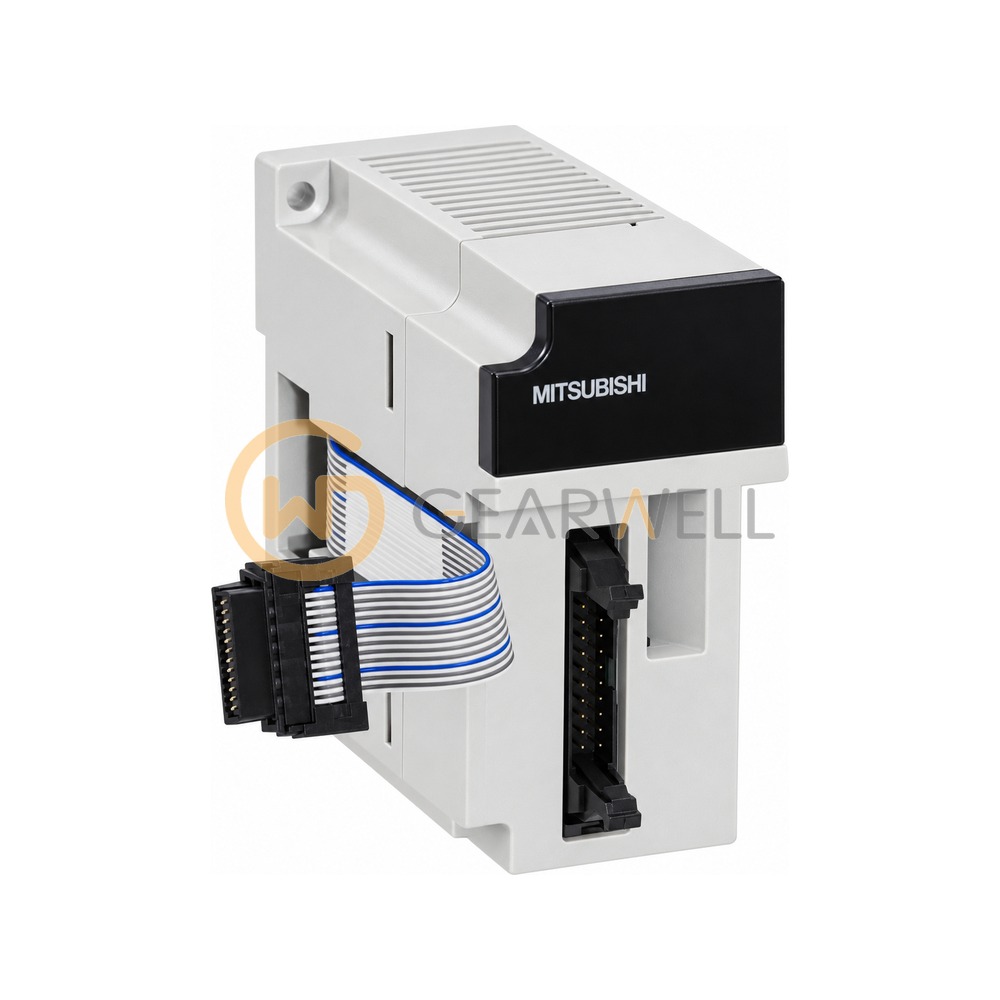

Mitsubishi Electric FX2N-10PG Positioning module (1 axis, 1 MHz pulse output)
- Brand
- Mitsubishi Electric
- Model
- FX2N-10PG
- GEARWELL SKU
- GWP-000013478
- Category
- PLCs & I/O
Key specifications
- Mass
- 0.2 kg
- Power supply
- 5 V DC 120 mA (internal); 24 V DC ±10% (external)
- Applicable PLC
- FX2N, FX3U, FX2NC, FX3UC
- Maximum frequency
- 1 MHz
- Pulse output form
- Pulse train + direction, forward/reverse pulse train
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX2N-10PG is a MELSEC-F special function block for independent 1-axis positioning with a 1 MHz differential line driver pulse output. It occupies 8 I/O points on the PLC, draws 120 mA from the PLC's 5 V DC supply and connects through a 20-pin connector. Confirm the PLC series and the drive it will control when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX2N-10PG Positioning module (1 axis, 1 MHz pulse output) |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX2N-10PG |
| Category | PLCs & I/O |
| Mass | 0.2 kg |
| Power supply | 5 V DC 120 mA (internal); 24 V DC ±10% (external) |
| Applicable PLC | FX2N, FX3U, FX2NC, FX3UC |
| Maximum frequency | 1 MHz |
| Pulse output form | Pulse train + direction, forward/reverse pulse train |
| Pulse output system | Differential line driver |
| Number of control axes | 1 independent axis |
| Acceleration/deceleration | Trapezoidal, S-pattern |
