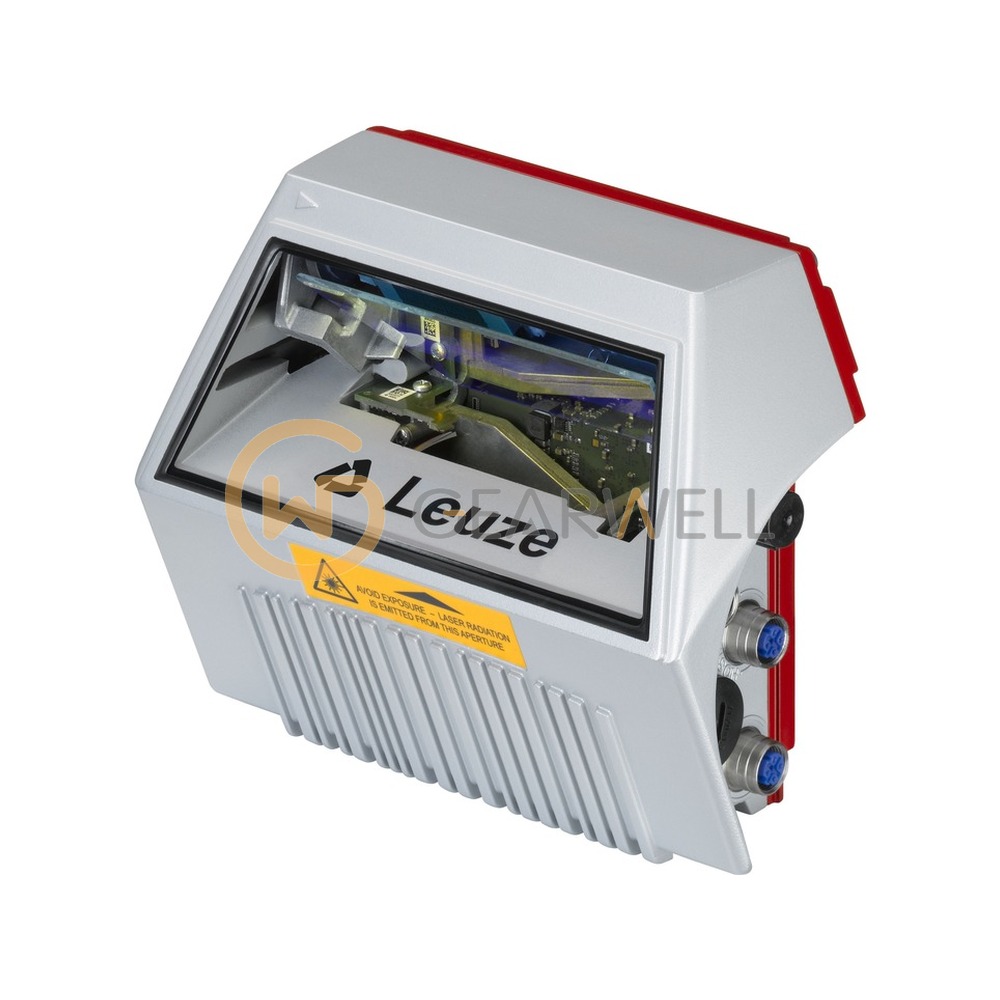

Leuze BCL 504i OM 100 BCL 500i Stationary Bar Code Reader
- Brand
- Leuze
- Model
- BCL 504i OM 100
- GEARWELL SKU
- GWP-000009578
- Category
- Machine Safety & Vision
Key specifications
- Interface
- PROFIBUS DP
- Light source
- Laser, red, 650 nm
- Scanning rate
- 800 ... 1,200 scans/s
- Supply voltage
- 10 ... 30 V DC
- Reading distance
- 300 ... 1,000 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Leuze BCL 504i OM 100 BCL 500i Stationary Bar Code Reader |
|---|---|
| Brand | Leuze |
| Model | BCL 504i OM 100 |
| Category | Machine Safety & Vision |
| Interface | PROFIBUS DP |
| Light source | Laser, red, 650 nm |
| Scanning rate | 800 ... 1,200 scans/s |
| Supply voltage | 10 ... 30 V DC |
| Reading distance | 300 ... 1,000 mm |
| Degree of protection | IP 65 |
| Dimensions (W x H x L) | 173 x 84 x 147 mm |
| Power consumption, max. | 14 W |
