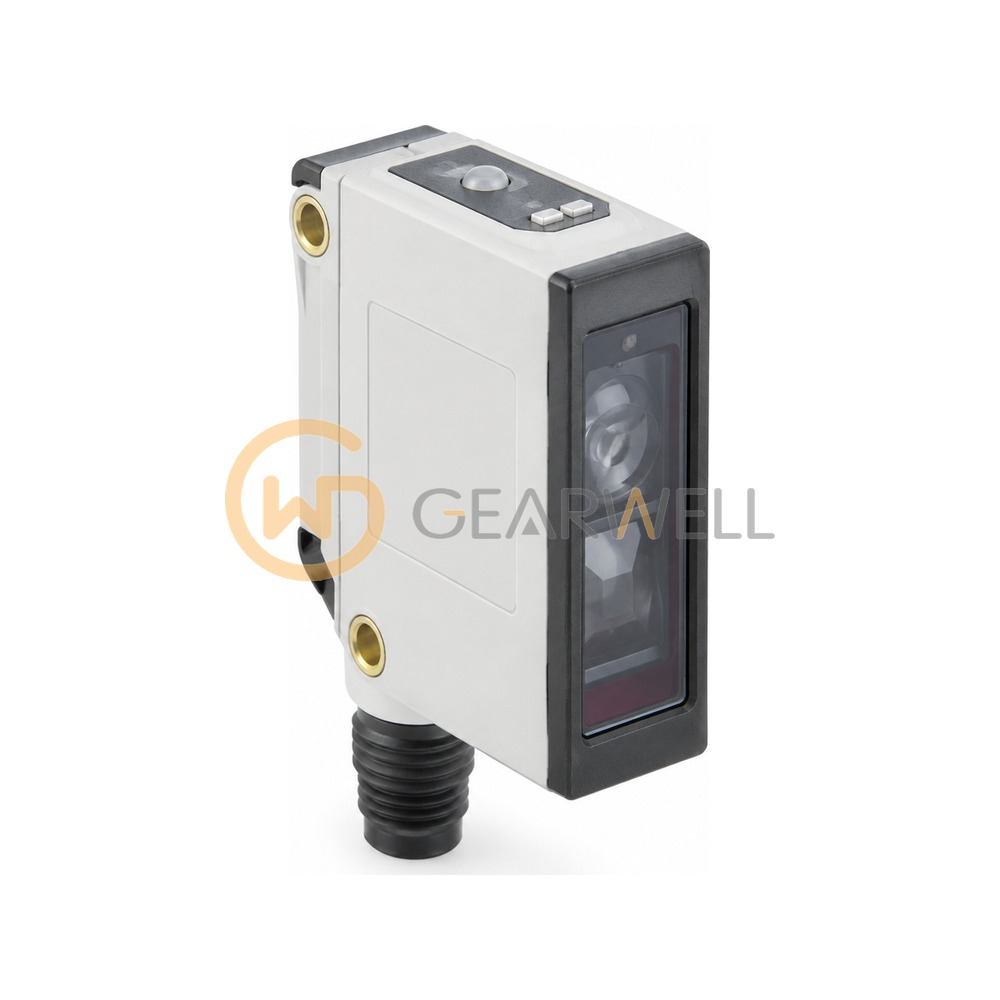

Leuze IPRK 92/4 S Polarized Retro-Reflective Photoelectric Sensor
- Brand
- Leuze
- Model
- IPRK 92/4 S
- GEARWELL SKU
- GWP-000036736
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Part no.
- 50013059
- Connection
- 6-pin standard plug
- Light source
- LED, 660 nm, polarised red
- Protection class
- IP65 (IPRK 92/4...S)
- Switching output
- PNP, light/dark switching
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Leuze IPRK 92/4 S Polarized Retro-Reflective Photoelectric Sensor |
|---|---|
| Brand | Leuze |
| Model | IPRK 92/4 S |
| Category | Proximity & Photoelectric Sensors |
| Part no. | 50013059 |
| Connection | 6-pin standard plug |
| Light source | LED, 660 nm, polarised red |
| Protection class | IP65 (IPRK 92/4...S) |
| Switching output | PNP, light/dark switching |
| Operating voltage | 10 ... 30 V DC |
| Collected spelling | Iprk 924 S (slash restored per Leuze order guide) |
| Operating range (TK(S) 100x100) | 0.2 ... 8.5 m |
| Ambient temperature (operation) | -20 ... +60 C |
| Switching frequency / response time | 500 Hz / 1 ms |
